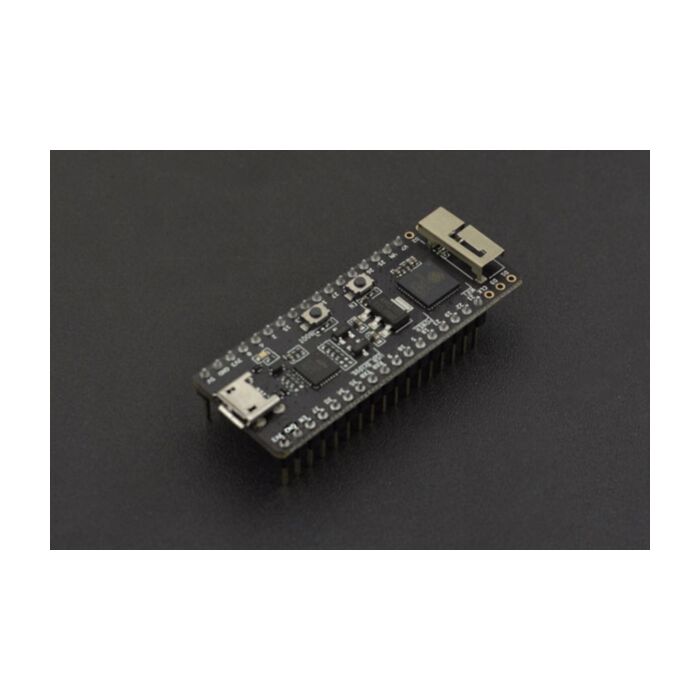

ESP32-PICO-KIT Development Board

Rating:

100% of 100

SKU: DFR0625 Brand: DFRobot

ESP32-PICO-KIT is a mini IoT development board with functionalities of WiFi and Bluetooth. With a size of 52x 20.3x10mm, the module integrates a 4 MB SPI flash...

$30.25 AUD, inc GST

$27.50 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 05

Quantity Discounts:

10-25 $26.67 (exc GST)
25+ $26.13 (exc GST)

ESP32-PICO-KIT is a mini IoT development board with functionalities of WiFi and Bluetooth. With a size of 52x 20.3x10mm, the module integrates a 4 MB SPI flash, and a USB-UART Bridge circuit, allowing the developers to connect the board a PC’s USB port for downloading and debugging. Featuring a compact body, robust performance and low power, this product is well suited for any space-limited or battery-operated applications, such as wearable electronics, medical equipment, sensors, and other IoT products.

ESP32-PICO-KIT Development Board, DFRobot

At the core of this board is ESP32 chip, which is a single 2.4GHz WiFi and Bluetooth combo chip designed with TSMC’s 40 nm ultra-low power technology. ESP32-PICO-D4 integrates all peripheral components seamlessly, including a crystal oscillator, flash, filter capacitors and RF matching links in one single package. Given that on other peripheral components are involved, module welding and testing is not required either. For easy interfacing, all the IO signals and system power ESP32-PICO-D4 are led out through two rows of 20×0.1” pitch header pads on both sides of the development board. To make the ESP32-PICO-KIT easier for Dupont wires, 2 ×3 header pads grouped on each side of the board besides the antenna are not populated and may be populated later by the user if required. As such, ESP32-PICO-D4 reduces the complexity of the supply chain and improves control efficiency.

ESP32-PICO-KIT Development Board, DFRobot

Specification

Wi-Fi

Protocols: 802.11 b/g/n (802.11n up to 150 Mbps)
A-MPDU and A-MSDU aggregation and 0.4 µs guard interval support
Frequency: 2.4 ~ 2.5 GHz

Bluetooth

Protocols: Bluetooth V4.2 BR/EDR and BLE Specification
Radio: NZIF receiver with –97 dBm sensitivity
Class-1, class-2 and class-3 transmitter
AFH
Audio: CVSD and SBC

Hardware

Module Interfaces: ADC, DAC, touch sensor, SD/SDIO/MMC Host Controller, SPI, SDIO/SPI Slave Controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, infrared remote controller, GPIO, pulse counter
On-chip sensor: Hall sensor
Integrated crystal: 40 MHz crystal
Integrated SPI flash: 4 MB
Operating voltage/Power supply: 2.7V~3.6V
Average Operating current: 80 mA
Minimum current delivered by power supply: 500 mA
Operating temperature range: –40 °C ~ 85 °C
Package size: 52 x 20.3 x 10 mm/2.05 x 0.80 x 0.39”

Documents

Product wiki

Schematic

Parts List

ESP32-PICO-KIT Development Board x1

This product is listed in:

Development Boards
