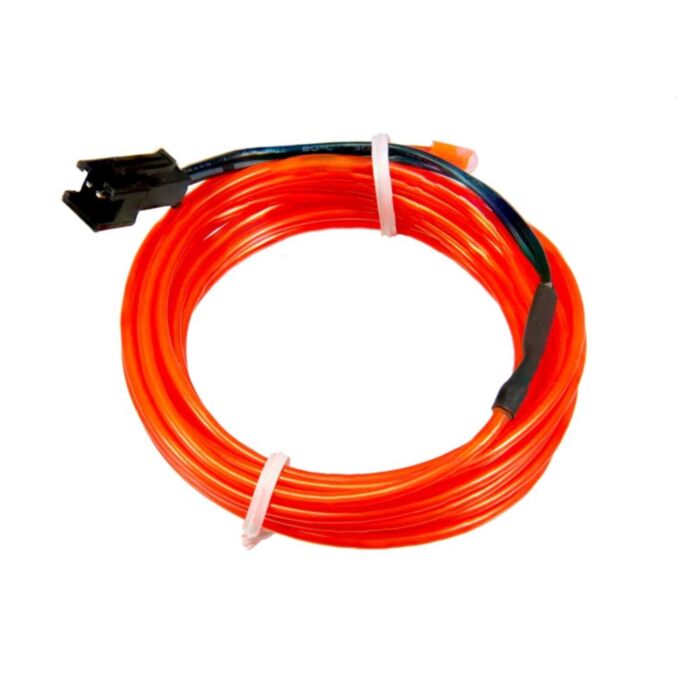

EL Wire - Red 3m

SKU: CE06476 Brand: Core Electronics
EL (Electroluminescent) wire is a cool flexible wire which will glow when under a high AC voltage!
$11.55 AUD, inc GST
$10.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-50 $9.97 (exc GST)
  • 50+ $9.66 (exc GST)
- +

6 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

EL products are tricky as there is natural variation in the brightness and colour, even within products from the same manufacturer. If colour accuracy is important to your project consider LED-based wires as an alternative

EL (Electroluminescent) wire is a cool flexible wire which will glow when under a high AC voltage!

Electroluminescent wire is simply a wire coated in phosphor and when a correct voltage is applied the wire lights up!

Use it for indoor or outdoor lighting or for toys and arts its often used for costuming, decoration, accent lighting, safety vests, bicycle/motorcycle/car/boat/home decoration, signs, etc! This wire is not designed explicitly for outdoor use so it will fade if continuously exposed to UV.

Features

  • Bendable!
  • Length: 3m
  • Diameter: approximately 2.3mm

Specifications

  • Operating Voltage Range:20~220V
  • Optimum operating voltage:120V
  • Frequency range: 50-5000Hz
  • Optimum working frequency: 1500-2000Hz
  • Direct capacitance:6nf/m(20℃,RH< 80%)
  • Glow Brightness:Voltage:120V,Frequency:200Hz~2000Hz:30cd/m2~126 cd/m2
  • Consumed Power:Voltage:120V,Frequency:200Hz~2000Hz:108mw/m~1032mw/m
  • Working Life:Voltage:100V,Frequency:400Hz,Normal Temperature and Humidity,Around 5000Hrs
  • Continuous Working Temperature/Relative Humidity:-10℃~+60℃ ;RH< 90%
  • Storage Temperature/ Relative Humidity:-10℃~+60℃;RH< 65%
