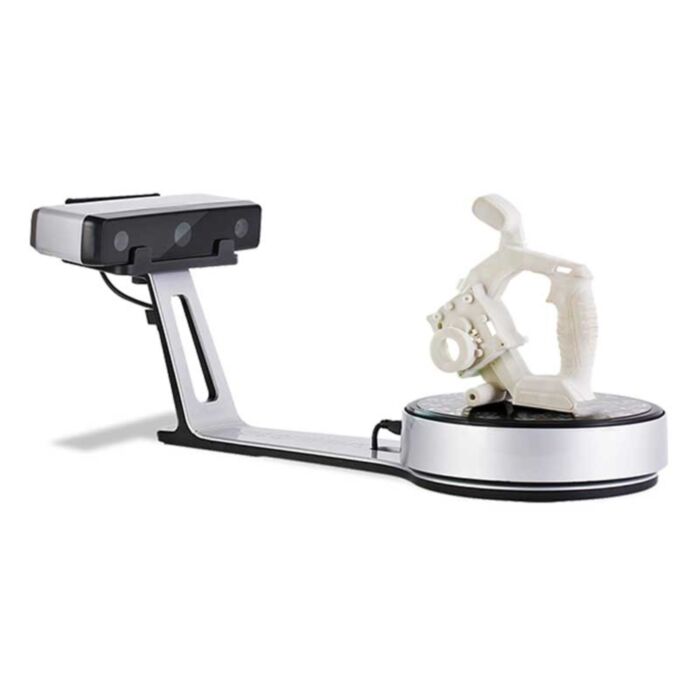

EinScan-SP 3D Scanner
Available with a lead time
Expect dispatch between May 23 and May 28
Quantity Discounts:
- 3-6 $3571.36 (exc GST)
- 6+ $3497.73 (exc GST)
The expert choice with enhanced experience
- High accuracy certified through serious accuracy calibration process
- Faster scanning speed
- Make high resolution 3D modeling accessible to professional users
- Meet your demands for high-quality 3D modeling of reverse engineering and design
Multi-functional 3D scanner
- Capture 3D Data Easier and Faster
- Dual scan modes: Auto Scan and Fixed Scan
- Wide scan range from small to large.
Easy Operation, Faster Scanning Speed
- One-click scanning
- Automatic calibration with no rigid set-up required
- 4 seconds for a single scan
- 1 minute for a 360-degree scan under auto scan mode
High Accuracy Certified Through Serious Accuracy Calibration Process
- Higher accuracy, 0.05mm for a single scan
- Multiple ways of alignment: markers, turntable markers, feature and manual
Compatible with 3D printers
- Auto meshing to watertight 3D data
- Seamlessly connect to 3D printers
- Provide API access service for any brand 3D printers.
Extensive post-processing functions
Software of EinScan-SE/SP has the functions of filling holes, smoothing and sharpening, and can also readjust the data coordinates in the post-processing process to provide more perfect 3D data for subsequent applications.
Capable of Reverse Engineering and Design in Office
- Explore fast scanning experience
- Making the high-resolution scanning available to everyone
Specifications
- Scan Mode: Fixed Scan with/without turntable
- Scan Accuracy: =0.05mm (single-shot accuracy)
- Scan Speed: Single scan < 4s
- Point Distance: 0.17mm~0.2mm
- Output Formats: OBJ, STL, ASC, PLY, 3MF, P3
- Turntable: Turntable with Coded Targets
- Net Weight: 4.2Kg
- Color Scan: Yes
- Outdoor Operation: Setup the shelter or cover to avoid direct sunlight
- Special Objects for Scanning: For the transparent, highly reflective or some dark objects, please spray powder before scanning.
- Single Scan Range: 200x150mm
- Working Distance: 290mm ~480mm
- Printable Data Output: Able to export watertight 3D model directly to 3D printing
- Light Source: White Light LED
- Stand-off Distance: 290mm ~ 480mm
- Turntable Loading Capacity: 5kg
- Computer Requirements: USB 2.0 ; OS Win7, Win8, Win10 (64bit) ; CPU Dual-Core i5 ; RAM 8GB
- Computer Recommendations: Nvidia series, graphic memory > 1GB ; 1x USB 2.0 ; CPU i5 or higher ; RAM 8GB or higher
- Calibration Board: Standard
