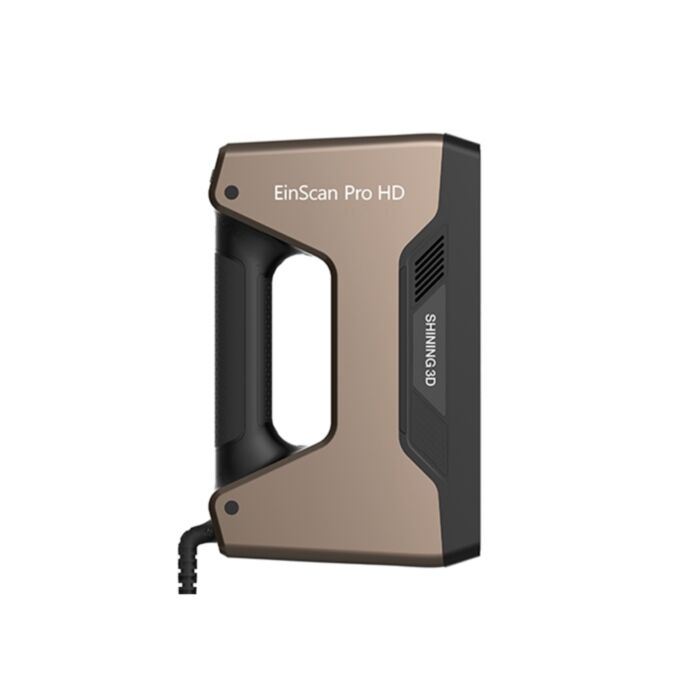

EinScan Pro HD

The EinScan Pro HD delivers unparalleled performance in capturing high resolution and accuracy by handheld scanning. Exceptional versatility and powerful optimizations come together for the ultimate high-efficiency and professional-grade 3D scanning experience. It is reliable assistant for designers and engineers who care about high quality 3D modeling.

Ergonomic designed EinScan Pro HD with a light weight, you can easily take the scanner anywhere you go; easy plug-and-play let you run the scanner without complex installation; the compact size allows scanner moving freely with unlimited scanning experience.

• Download EinScan Pro HD Brochure
• Download EinScan Pro HD Technical Specifications
• Download How to choose the right 3D Scanner

Impressive High Resolution for Fine Details

By adopting a new structure light projection modular, the stripe pattern scanning which was traditionally used in Fixed Scan Mode is now utilized to Handheld HD Scan Mode.

By 0.2mm minimum point distance setting with optimized algorithm, it brings high resolution and accuracy in handheld scanning as good as under fixed scan.

Less Limitations of Scan Objects

With new lighting projection hardware and software algorithm, EinScan Pro HD is capable to scan a wider range of objects of dark or black color and casting metal surface, enriching the capability for 3D scanning of materials.

Fast Scanning Speed and Data Transmission

EinScan Pro HD has a dramatic breakthrough in scanning capability, processing up to 3,000,000 points per second under handheld scan mode, and less than 0.5s for every single frame in Fixed Scan Mode. USB 3.0 provides high speed data transmission.

High Accuracy for High Quality 3D Modeling

By kinds of positioning methods, both scanner or objects can be moved during scanning.
It delivers accuracy up to 0.04 mm in Fixed Scan Mode. Under handheld scanning mode by marker alignment, the volumetric accuracy is up to 0.045mm+0.3mm/m.

Color 3D Scanning

Need color and texture. You can add the color module for the Einscan Pro HD.(Sold seperately)

Reverse Engineering Kit

Get the Reverse Engineering Bundle, which is a powerful reverse 3D modeling kit and it includes the following:

• Einscan Pro HD
• Einscan Pro HD Industrial Pack
• Geomaic Essentials
• SolidEdge Shining Edition

Technical Specifications

• Scan accuracy: up to 0.045mm
• Volumetric Accuracy [1]: 0.3mm/m (markers alignment)
• Scan Speed: 10 frames/s; 3,000,000 points/s
• Point Distance: 0.2mm-3mm
• Single Scan Range: 209*160mm - 310*240mm
• Depth of Field: ± 100mm
• Working Distance: 510mm
• Light Source: LED
• Align Mode: Markers Alignment, Feature Alignment [2], Hybrid Alignment [3]
• Texture Scan: Yes (with Add-on: Colour Pack)
• Outdoor Operation: Set up the shelter or cover to avoid direct sunlight
• Special Scan Object: For the transparent, highly reflective or some dark objects, please spray powder before scanning
•  Software Included: ExScan Pro, Solid Edge SHINING 3D Edition
•  Output Formats: OBJ; STL; ASC; PLY; P3 ; 3MF
• Scanner Body Weight: 1.25kg (include the USB3.0 cable)
• Operating Temperature Range: 0-40°C
• Operating Humidity Range: 10-90%
• Supported OS: Win10, (64bit)
• Recommended Configuration: Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: I7-8700, memory: 64G; interface: high-speed USB 3.0
• Required Configuration: Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G

[1]. Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.3mm per 100cm.
The conclusion is obtained by measuring the center of sphere under marker alignment.
[2]. Select this alignment when scanning objects with rich geometrical features on the surface.
[3]. Hybrid alignment means marker alignment and feature alignment can be switched automatically.
