DRV8825 Stepper Motor Driver Carrier, High Current (Header Pins Soldered)

Rating:

100% of 100

SKU: POLOLU-2982 Brand: Pololu

This version of Pololu's DRV8825 Stepper Motor Driver Carrier ships with male header pins installed, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. Please see the DRV8825 Stepper Motor Driver Carrier product page for more information about the driver.

$29.25 AUD, inc GST

$26.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $25.53 (exc GST)
25+ $24.73 (exc GST)

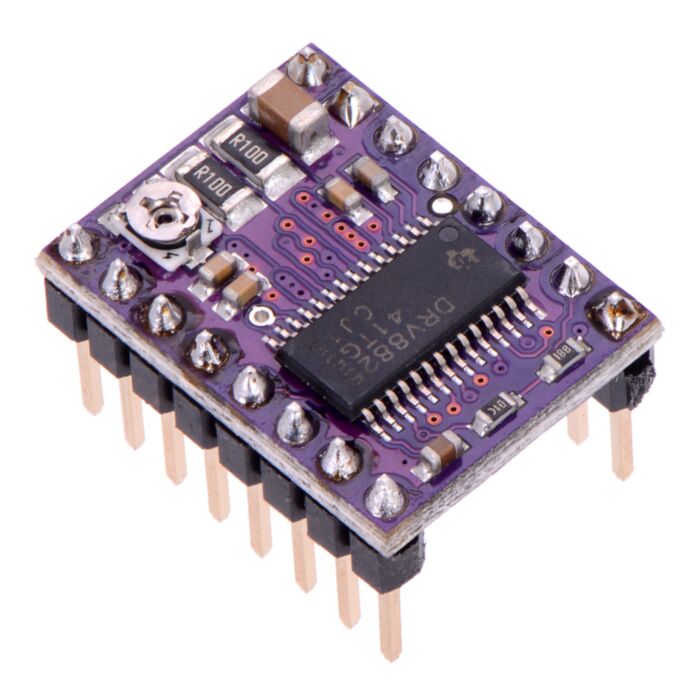

This version of Pololu's DRV8825 Stepper Motor Driver Carrier ships with 0.1"-pitch male header pins installed as shown in the main product picture, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. Please see the DRV8825 Stepper Motor Driver Carrier product page for more information about the driver.

People often buy this product together with:

Stepper Motor: Bipolar, 200 Steps/Rev, 42×38mm, 2.8V, 1.7 A/Phase

Dimensions

Size:	0.6" × 0.8"
Weight:	2.7 g

General specifications

Minimum operating voltage:	8.2 V
Maximum operating voltage:	45 V
Continuous current per phase:	1.5 A¹
Maximum current per phase:	2.2 A²
Minimum logic voltage:	2.5 V³
Maximum logic voltage:	5.25 V³
Microstep resolutions:	full, 1/2, 1/4, 1/8, 1/16, and 1/32
Reverse voltage protection?:	N
Bulk packaged?:	N
Header pins soldered?:	Y

Identifying markings

PCB dev codes:	md20b
Other PCB markings:	blank white box

Notes:

1: Without a heat sink or forced air flow.
2: With sufficient additional cooling.
3: This driver works with 2.5 V to 5.25 V logic. It does not take an external logic power supply.

File downloads

DRV8824/DRV8825 stepper motor driver carrier schematic diagram (196k pdf)

Printable schematic diagram for the DRV8824/DRV8825 stepper motor driver carrier.
Dimension diagram of the DRV8825 Stepper Motor Driver Carrier, High Current (500k pdf)
3D model of the DRV8825 Stepper Motor Driver Carrier, High Current (4MB step)

Recommended links

Texas Instruments DRV8825 stepper motor driver datasheet
Video: setting the current limit on Pololu stepper motor driver carriers
Texas Instruments DRV8825 product page

Texas Instruments product page for the DRV8825, where you can find the latest datasheet and additional resources.
