Double-Sided Single Color 12V LED Strip - Natural White 4500K - 1 meter

SKU: ADA5863 Brand: Adafruit
They're bright, they're white, they light up the night - look at them too close, and you may get spots in your sight... This is a Single Color,...
$16.71 AUD, inc GST
$15.19 AUD, exc GST

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

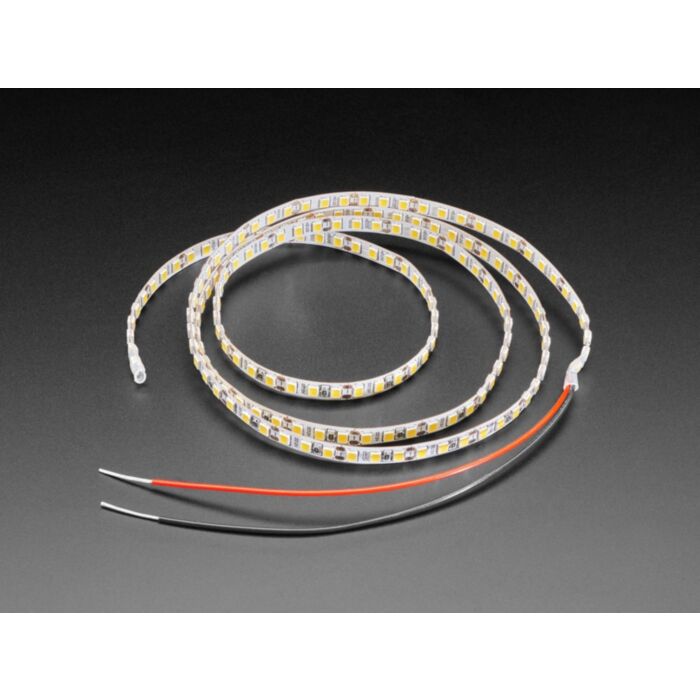

They're bright, they're white, they light up the night - look at them too close, and you may get spots in your sight... This is a Single Color, Double-Sided LED strip with 336 bright 2.6mm x 3.2mm white LEDs adorning both surfaces of a 6mm wide, 1 meter long LED strip.

Adafruit particularly like these strips because they are both incredibly bright and provide near-360-degree illumination, with a thin strip so it can easily be integrated into any design.

This strip variant has ~4500K 'natural' white LEDs. These sit between warm and cool, so they're good for clean, indoor lighting effects that aren't too intense.

Each order gets a 1-meter long strip with 2 power wires in red & black. Provide 9V (bright) to 12V (very bright!) and the strip starts to glow. The whole strip draws about 950 milliAmps maximum at 12V, 275mA at 9V. You can cut this strip down if you need to, and even re-solder to it - there are cuttable sections every 17.5mm with solder nubs.

Note these are not 'NeoPixel' LED strips; you cannot turn individual LEDs on or offThis guide on analog RGB LED strip control will show you how it works - you'll want a microcontroller with a PWM output and N-MOSFETs or a ULN2803 to control the power to the entire LED element.

Technical Details

Overall LED strip dimensions:

  •  1000mm length x 6mm width x 1.8mm height
    RoHS 2 2011 65 EU CompliantRoHS 2 2015 863 EU Compliant
