Dobot Vision Kit

SKU: POLOLU-5401 Brand: Pololu

The Dobot Vision Kit is a hardware and software platform that can be used to add sophisticated image processing to cobot setups like the Dobot MG400 robot...

Special Price $3,922.08 AUD, inc GST

Regular Price $4,801.01 AUD, inc GST

$3,565.53 AUD, exc GST

Special pricing ends 14 July 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Apr 25 and Apr 28

The Dobot Vision Kit is a hardware and software platform that simplifies adding image processing to a cobot setup. The software has many sophisticated features, including pattern matching, positioning (rotation and translation), measurement, item detection and color recognition, and defect detection. The kit includes an HD (5 megapixel) color industrial camera, a 12 mm fixed focus lens, and a white auxiliary light source (see specifications below for more information), along with a base plate, mounting hardware, and various accessories such as a calibration grid, colored stacking/sorting blocks, and some materials for use with the software’s premade demonstrations. Assembly and setup information can be found in the Dobot Vision Kit Installation guide (2MB pdf).

The Dobot Vision Studio software supports a graphical programming interface with drag-and-drop operations. The software offers over a thousand image processing operators and powerful algorithms. It also includes various demo programs for common operations such as taking measurements, doing calibrations and alignments, and image processing, as well as color, bar code, and character recognition. The kit provides various SDK interfaces and supports GigEVision and USB3Vision standards, as well as other communication protocols such as TCP, UDP, serial port, Modbus, and PLC. See the Dobot Vision Studio User Guide (17MB pdf) for more information.

Dobot Vision Kit set up for use with the Dobot MG400 Robot Arm (not included).

The sturdy metal baseplate offers an integrated mounting solution for the Dobot MG400 Desktop Cobot Robotic Arm. When used together, the Dobot MG400 robot arm and Dobot Vision Kit create a powerful combination of accuracy and versatility capable of taking automation tasks to the next level.

Specifications

HD Color Industrial Camera:

Sensor size: 1/2.5" CMOS
Sensor type: AR0521
Effective Pixel: 5 million
Hue: color
Pixel size: 2.2 × 2.2 µm
Frame rate / resolution: 31 FPS @2592×1944
SNR: >40 dB
Dynamic range: >60 dB
Shutter type: curtain exposure
Time of exposure:
- Bayer: 16 µs – 1 sec
- Other format: 28 µs – 1 sec
Exposure control: auto/manual
Size: 29 × 29 × 30 mm
Data Interface: USB 3.0
Data format: Mono 8/10/12, Bayer GR 8/10/10p/12/12p, YUV422_YUYV_Packed, YUV422_Packed, RGB8
Lens mount: C-Mount

12mm Fixed Focus Industrial Camera Lens:

Focus: 12 mm
Maximum image size: 1/1.8" (f9 mm)
Aperture: F2.8 – F16
Aperture control: manual
Focal point control: manual
Visual angle: 41.2° diagonal, 1/1.8" 34.4° horizontal, 23.4° vertical
Optical distortion: -0.38%
Flange back focus: >17.526 mm
Mount: C-Mount
Filter thread: M27×0.5
Size: f29×35.36 mm

White auxiliary light source:

Luminous color: white
LED count: 48
Illumination: 40,000 lux
Wavelength: 455 – 457.5 nm
Operating distance: 35 – 110 mm
Size: 40 mm internal diameter, 70 mm external diameter, 25 mm height
Outer diameter of lamp barrel: 39 mm max
Weight: 0.48 kg

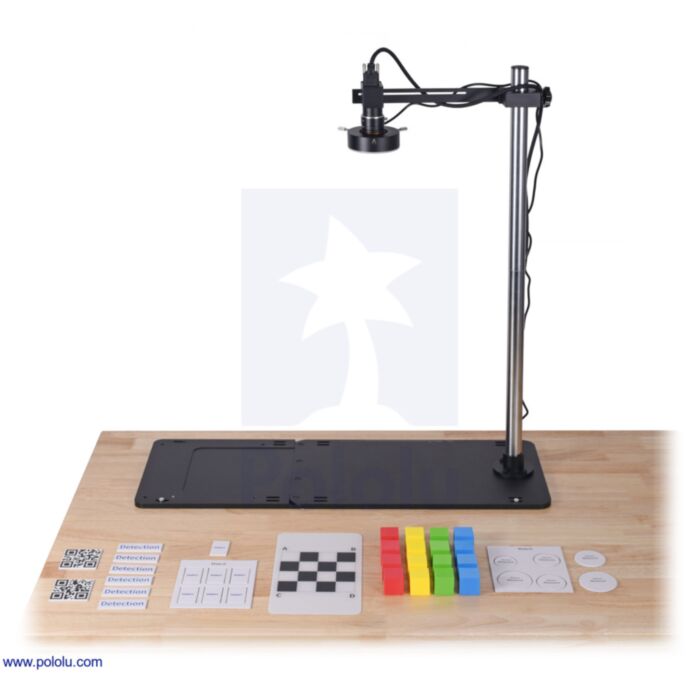

Main contents of the Dobot Vision Kit.

General specifications

Model:	DT-AC-VIMG-02E

File downloads

Dobot Vision Studio User’s Guide V4.1.2 – June 8, 2022 (17MB pdf)
Dobot Vision Kit Installation Guide V1.1 – December 13, 2022 (2MB pdf)
Dobot Vision Kit Hardware Specifications (266k pdf)
