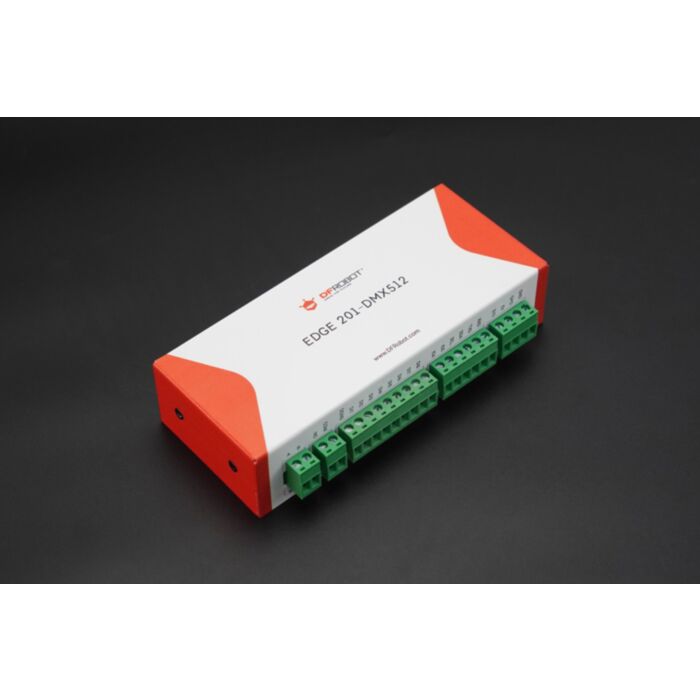

DMX512 Lighting Programming Controller for Arduino and ESPHome
Available with a lead time
Expect dispatch between Jan 02 and Jan 06
Introduction
The EDGE102-DMX512 controller is an advanced lighting control system designed to manage stage, theater, and venue lighting using the DMX512 protocol. With a variety of interfaces—including RS485, I2C, and UART—this controller supports seamless connections to a range of sensors and devices, including compatibility with Arduino, ESP32, and ESPHome for easy integration into custom projects. It offers programmable, sensor-based automation for lighting and other stage equipment, moving beyond traditional manual control by consoles. Its dual-core architecture—combining the ESP32-S3 and a dedicated DMX512 chip—ensures high reliability, flexibility, and ease of use, making it a versatile solution for modern lighting applications. It features integrated WiFi and Bluetooth capabilities, allowing for remote control and programming.
Intelligent Automation with Sensor Integration
The EDGE102-DMX512 controller distinguishes itself by enabling automated control of lighting and stage equipment through sensor integration. While conventional DMX512 systems require manual operation through a control console, this controller allows for the connection of infrared sensors, sound level meters, and laser sensors, triggering lighting effects automatically based on environmental inputs. With 8 optically isolated industrial switch inputs ensuring compatibility with various PNP sensor types, it enhances efficiency and reduces the need for constant human supervision in environments like stages and commercial spaces.
8 optically isolated industrial switch inputs
Dual-Core Architecture for Stability and Wireless Control
The lighting programming controller's dual-core design, featuring the ESP32-S3 and a dedicated DMX512 processing chip, ensures robust performance. The ESP32-S3 core supports WiFi and Bluetooth, enabling remote control and user programming through wireless networks. This architecture simplifies programming, making the setup of complex lighting systems more accessible while ensuring seamless communication with connected devices. The ability to wirelessly program through interfaces like Arduino enhances operational flexibility and user convenience.
Supports WiFi and Bluetooth
Versatile Peripheral Support and Flexible Integration
Equipped with a wide range of peripheral interfaces, including RS485, I2C, and UART ports along with GPIO pins, the EDGE102-DMX512 controller can connect to various sensors, actuators, and lighting devices. This versatility enables the creation of custom interactive lighting solutions for diverse environments, such as stage shows, parties, and large-scale lighting installations in public venues. The RS485 port’s support for both master and slave modes allows flexible communication with other devices, while the I2C and UART interfaces enhance compatibility with open-source sensors and hardware.
RS485, I2C, and UART ports along with GPIO pins
Features
Applications
Specification
System Parameters
DMX512 Output Interface: Three-pin XLR female connector
Mounting Options: Rail mount, ear mount
Documents
Parts List
