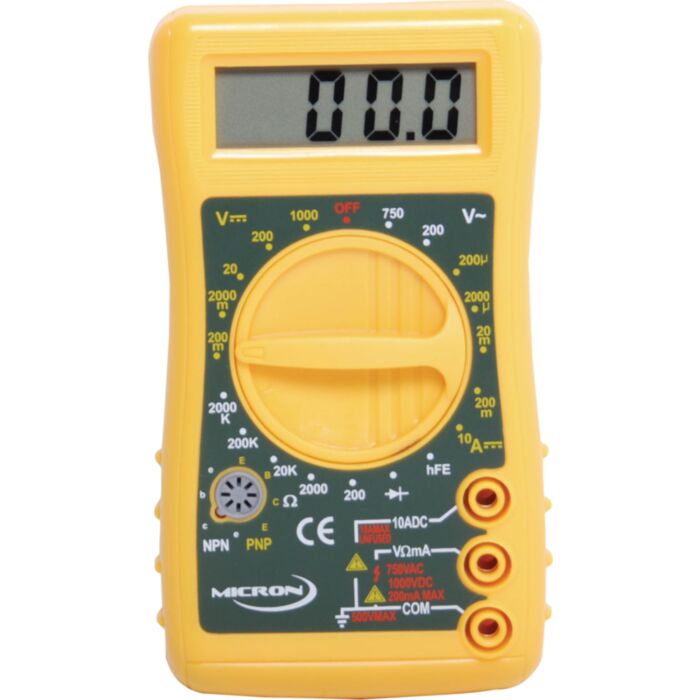

Digital Multimeter 19 Range With Transistor Test

SKU: AQ1053A

$10.95 AUD, inc GST
$9.95 AUD, exc GST
Digital Multimeter 19 Range With Transistor Test

SKU: AQ1053A

$10.95 AUD, inc GST
$9.95 AUD, exc GST

Retired Product

Replaced by: digital multimeter

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been replaced by: digital multimeter
Featuring 19 ranges, this 3.5 digit multimeter offers an in-built hFE transistor and diode test function. This meter also offers many of the features of much more expensive models but at the fraction of the cost. Perfect as a spare meter for the toolbox or work van.

Features

  • Low battery indicator
  • Transistor tester
  • Current & voltage measurement
  • Diode tester
  • Battery included


Specifications

  • DC voltage:200mV, 2V, 20V, 200V, 1000V
  • AC voltage:200V, 750V
  • DC current:200µA, 2mA, 20mA, 200mA, 10A
  • Resistance:200 ohm, 2k ohm, 20k ohm, 200k ohm, 2M ohm
  • Diode test:Included
  • Transistor test:Measures hFE
  • Display:3.5 digit LCD, 1999 count
  • Protection:200mA M205 fused on all inputs
  • except 10A range
  • Dimensions:˜ 67W x 35D x 140H mm
