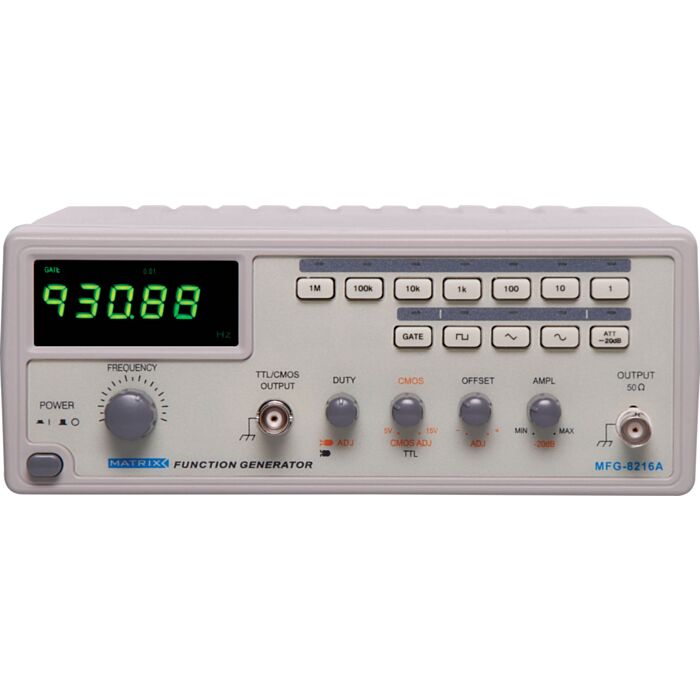

Digital Function Generator

SKU: AQ1562

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

One of the most versatile pieces of test equipment you can own. It provides a consistent waveform output, useful for checking response of audio circuits etc. This digital function generator has an in-built frequency counter, as well as functioning as a standard waveform generator with sinusoidal, triangle and square wave outputs. DC offset adjustment allows the waveform to be shifted above or below 0V. Output amplitude is adjustable from 0 to 10V p-p via front panel control, with a switchable -20dB attenuator. Output frequency is adjustable between 0.03Hz to 3MHz via front panel rotary dial over seven ranges. It has an external sync output for synchronising other test equipment to the signal generator, such as CROs and logic probes. This allows observation of phase shifts relative to the signal generator output. It also features a 3 MHz 4 digit frequency counter with external BNC counter input. A self calibration mode ensures excellent accuracy at all times.

Sine, square & triangle waveforms
External TTL sync output
Tilt bail arm handle for bench stand angle adjustment
High brightness seven segment LED displays
BNC input/output connectors
Push button range and waveform switching
3 MHz frequency counter
External voltage controlled frequency

Output
Frequency range: 0.3Hz to 3MHz
Accuracy: ±5% (at 3MHz position)
Amplitude: =10V p-p
Attenuator: -20dB ±1dB
Impedance: 50 ohm ±5%
Sine Wave
Flatness: <0.3dB (0.3Hz - 300kHz), <0.5dB (300kHz - 3MHz)
Distortion: =1% (0.3Hz - 200kHz) =35dB below fundamental in all ranges.
Square Wave
Rise / fall time: 100ns or less
Symmetry variation: ±2% (0.3Hz - 200kHz)
Triangle Wave
Linearity: 98% or more to 100KHz
Frequency Counter
Range: 0.3Hz - 3MHz
Accuracy: Time base accuracy ± 1 count
Time base: ±20ppm
Resolution: 10Hz up to 1Hz. 0.1Hz up to 100MHz
Input impedance: 1MO
CMOS output level: 4V p-p (±1V) / 14.5V p-p (±0.5V)
TTL output level: =3V p-p, fan out 20 TTL load
VCF input voltage: 0-10V ±1V (100 : 1)
VCF input impedance: 10kO ±10%
General
Power requirements: 240V AC
Dimensions: 251W x 291D x 91H mm
Weight: ˜ 2kg

Downloads

Instructions
