Codec Shield

SKU: DEV-11290

$69.78 AUD, inc GST
$63.44 AUD, exc GST

More Views

Codec Shield

SKU: DEV-11290

$69.78 AUD, inc GST
$63.44 AUD, exc GST

Retired Product


  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been retired and kept here for reference.

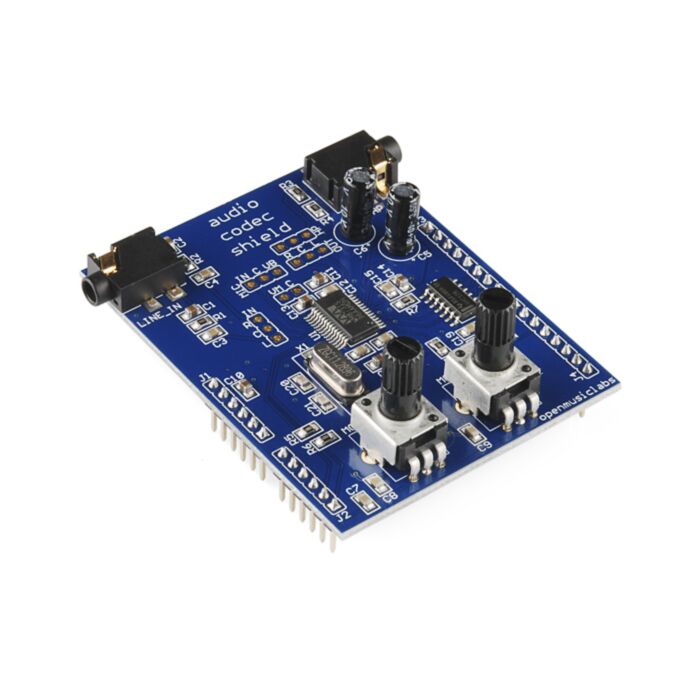

The Open Music Labs Codec Shield gives your Arduino (or Maple) development board access to the all of the audio processing power of the Wolfson WM8731 codec. The WM8731 is a low-power stereo audio codec with stereo 24-bit multi-bit sigma delta ADCs and DACs which are used with oversampling digital interpolation and decimation filters. Thanks to the variable sampling frequency of the codec, even the relatively slow Arduino can grab and alter audio in real-time.

The Codec Shield breaks out all of the useful pins on the WM8731 including the mic, line-in and out, headphone, and midrail bias voltage pin. It also has 1/8" stereo input and headphone out jacks as well as a pair of potentiometers for modulating parameters in your code.

The shield uses SPI to communicate with the WM8731 so it won’t work directly with the Arduino Mega, but getting started on an Arduino-UNO style board or LeafLabs Maple is easy! Just download the library and example code, hook up and audio source and start tweaking.

Obviously you don’t have much time to execute code between audio samples, so your code will need to stay pretty slim, but the example code gives a great framework for how your code should flow. Open Music Labs claims a performance increase of 4x when running the shield on a Maple (thanks to the higher clock speed).


  • Wolfson WM8731 Codec
  • On-board 5V to 3.3V Level Translator
  • Mic, Line-in and out, Headphone, and Midrail Bias Voltage Pins Broken Out
  • 1/8" Stereo In and Out Jacks
  • Single Pole Analog Input Aliasing Filter
  • 2 Potentiometers On-board for Modulating Code
  • Stereo 24-bit Multi-bit Sigma Delta ADCs and DACs
  • Arduino and Maple Libraries and Code Available!
