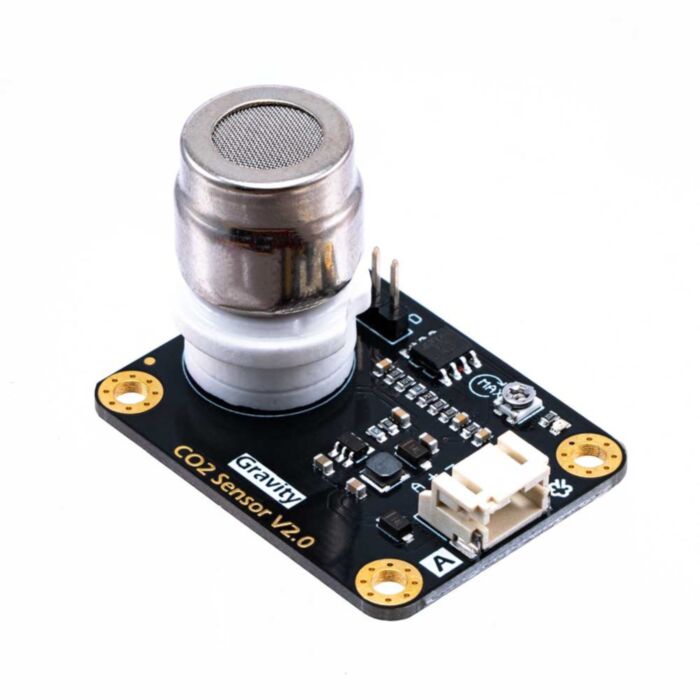

CO2 Sensor (Arduino compatible)

SKU: SEN0159 Brand: DFRobot
"Greenhouse Effect" is melting the Earth ice core every minute and creating dangerous icebergs. By knowing the exact concentration of CO2, we can do somehing to reduce the CO2 and to protect our Earth. For that reason, this CO2 sensor is designed by DFRobot engineer. This is the first CO2 sensor in Arduino market. The output voltage of the module falls as the concentration of the CO2 increases. The potentiometer onboard is designed to set the threshold of voltage. As long as the CO2 concentration is high enough (voltage is lower than threshold), a digital signal (ON/OFF) will be released.
$82.20 AUD, inc GST
$74.73 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 25 and Nov 28

Quantity Discounts:

  • 6-12 $72.48 (exc GST)
  • 12+ $70.99 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

"Greenhouse Effect" is melting the Earth ice core every minute and creating dangerous icebergs. By knowing the exact concentration of CO2, we can do somehing to reduce the CO2 and to protect our Earth. For that reason, this CO2 sensor is designed by DFRobot engineer. This is the first CO2 sensor in Arduino market.  The output voltage of the module falls as the concentration of the CO2 increases. The potentiometer onboard is designed to set the threshold of voltage. As long as the CO2 concentration is high enough (voltage is lower than threshold),  a digital signal (ON/OFF) will be released.
  • It has MG-811 sensor module onboard which is highly sensitive to CO2 and less sensitive to alcohol and CO, low humidity & temperature dependency. All components have industrial quality for stability and reproducibility.
  • Onboard heating circuit brings the best temperature for sensor to function. Internal power boosting to 6V for heating sensor best performance.
  • This sensor has an onboard conditioning circuit for amplifying output signal.
Notice:The new version of analog sensor port pin mapping has been changed as the following two features.Please check the tips for changing sensor cable pin mapping while using the I/O Expansion shield. We will continue to update. For the inconvenience caused, please understand.


APPLICATIONS

  • Air Quality Control
  • Ferment Process Control
  • Room Temperature CO2 concentration Detection

Specification

  • Operating voltage:5V
  • Interface: Analog
  • One digital output
  • High quality connector
  • Immersion gold surface
  • Onboard heating circuit
  • Size:32x42mm

Documents

Parts List

  • CO2 Sensor x1
