CO₂ Humidity and Temperature Sensor - SCD30

SKU: SPX-14751 Brand: Sparkfun

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

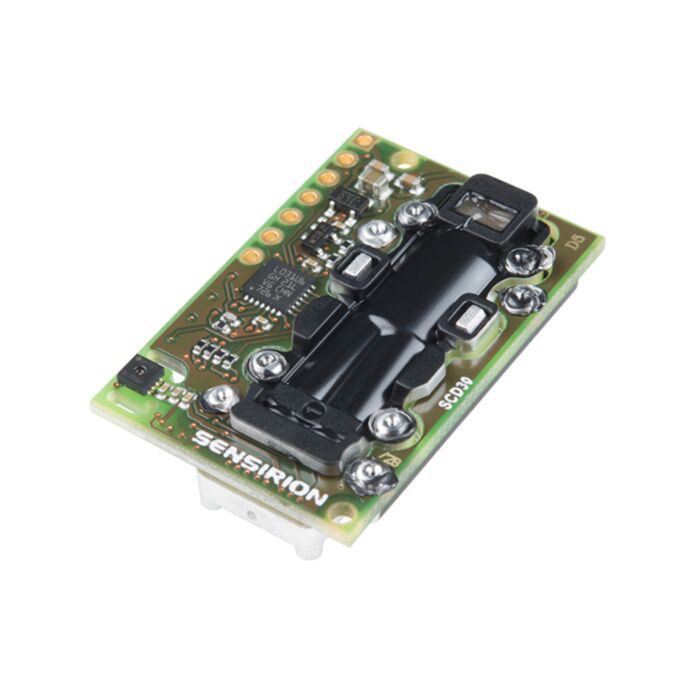

The SCD30 from Sensirion is a high-quality NDIR based CO₂ sensor capable of detecting 400 to 10000ppm with an accuracy of ±(30ppm+3%). In order to improve accuracy the SCD30 has temperature and humidity sensing built-in, as well as commands to set the current altitude.

SparkFun has written an Arduino library to make reading the CO₂, humidity, and temperature very easy. It can be downloaded through the Arduino Library manager: search for ‘SparkFun SCD30’ or it can be downloaded here. SparkFun recommends using a Qwiic Breadboard Cable to connect the SCD30 to a Qwiic compatible board. The YeLLow wire goes in the SCL pin. The SCD30 also supports a serial interface but SparkFun hasn’t worked with it.

The CO₂ sensor works very well and for additional accuracy, the SCD30 accepts ambient pressure readings. We recommend using the SCD30 in conjunction with the Qwiic Pressure Sensor - MS5637 or the Qwiic Environmental Sensor - BME680 to obtain the current barometric pressure.

Note: The SCD30 has an automatic self-calibration routine. Sensirion recommends 7 days of continuous readings with at least 1 hour a day of ‘fresh air’ for self-calibration to complete.

SparkFun does not plan to regularly stock all SparkX products so get them while they’re hot!

Experimental Product: SparkX products are rapidly produced to bring you the most cutting-edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products.

Features

NDIR CO2 sensor technology
Integrated temperature and humidity sensor
Best performance-to-price ratio
Dual-channel detection for superior stability
Small form factor: 35 mm x 23 mm x 7 mm
Measurement range: 400 ppm – 10.000 ppm
Accuracy: ±(30 ppm + 3%)
Current consumption: 19 mA @ 1 meas. per 2 s.
Energy consumption: 120 mJ @ 1 measurement
Fully calibrated and linearized
Digital interface UART or I2C

Documents

SCD30 Sales Sheet
Datasheet (SparkFun's waiting for permission from Sensirion to post)
SparkFun SCD30 Arduino Library repo (can also be downloaded through the library manager)
