CMPS11-Tilt Compensated Magnetic Compass

SKU: SEN0183

$61.99 AUD, inc GST
$56.35 AUD, exc GST

More Views

CMPS11-Tilt Compensated Magnetic Compass
61.99 AUD

SKU: SEN0183

$61.99 AUD, inc GST
$56.35 AUD, exc GST

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 2 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 25th of Dec with Express Post within Australia.

Introduction

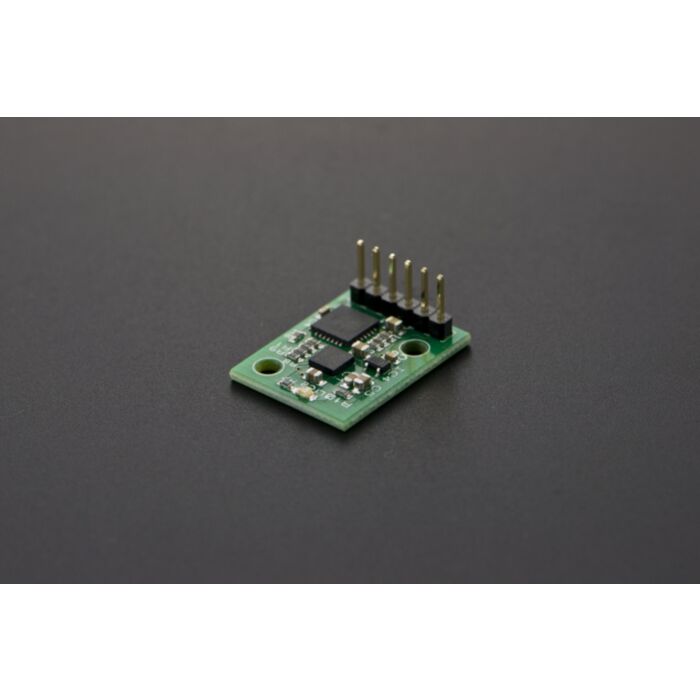

The CMPS11 is our 3rd generation tilt compensated magnetic compass. It packs a 3-axis magnetometer, a 3-axis gyro and a 3-axis accelerometer. A Kalman filter combines the gyro and accelerometer to remove the errors caused by tilting of the PCB. The CMPS11 presents a result of 0-3599 representing 0-359.9 or 0 to 255.

The output of the three sensors measuring x, y and z components of the magnetic field, together with the pitch and roll data can be used to calculate the target motion status, each of these components also supports raw data output. The CMPS11 module requires a power supply of 3.6 - 5v and a nominal 25mA of current. Support or I2C serial communication interface.

APPLICATIONS

  • Aircraft
  • Balancing robots
  • Indoor inertial navigation
  • Altimeter
  • Human–computer Interaction (HCI)

Specification

  • Voltage - 3.6v-5v
  • Current - 35mA Typ.
  • Resolution - 0.1 Degree
  • Accuracy - Better than 2%. after calibration
  • Signal levels - 3.3v, 5v tolerant
  • I2C mode - up to 100khz
  • Serial mode - 9600, 19200, 38400 baud
  • Weight : 10g
  • Size: 24.5 x 18.5 x 4.5mm

Parts List

  • CMPS11-Tilt Compensated Magnetic Compass    x1
