Build DIY customised off-grid LoRa mesh networks with high-gain rubber antennas and Nordic nRF52840 cores for reliable kilometre-range connectivity.

Connect QWIIC, STEMMA QT and PiicoDev modules to WisBlock in a sensor slot using a compact JST-SH interface for flexible IoT prototyping.

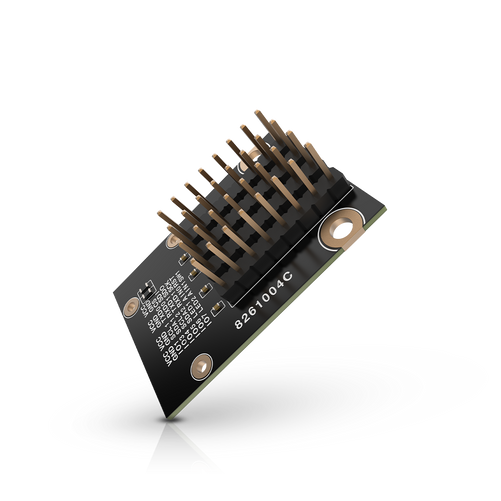

Break out WisBlock Core signals to four 8-pin headers for dual I2C, UART, SPI, six GPIOs and ADC, enabling seamless external peripheral connections.

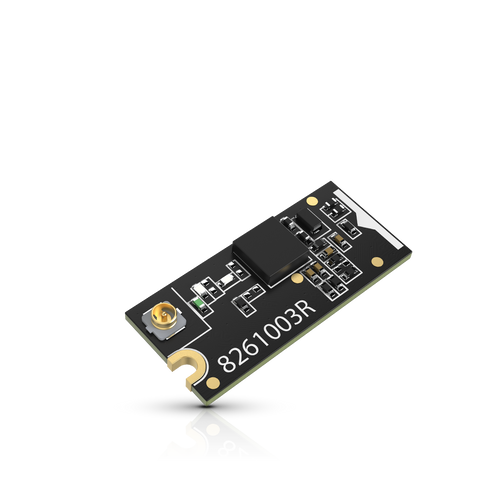

High-sensitivity GNSS module delivers ±2.5 m accuracy and 10 Hz updates across GPS, GLONASS, QZSS and BeiDou for low-power IoT trackers.

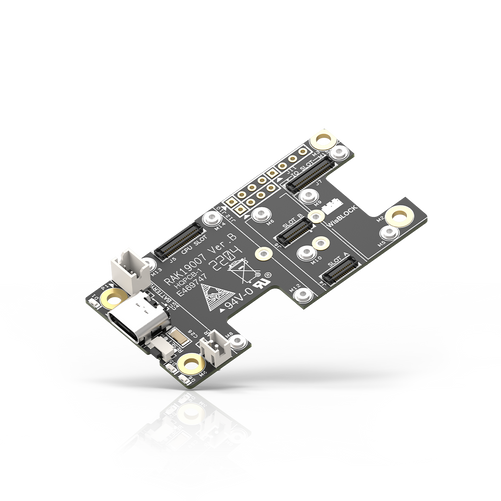

Second-generation modular base board with USB-C input, battery and solar charging, isolated GNSS slot and dynamic power switching for IoT projects.

Compact DC–DC converter transforms 5–24 V DC into stable WisBlock power with integrated lithium battery charging for industrial IoT applications.

Break out STM32WLE5CC pins and prototype LoRaWAN A/B/C or P2P networks with slots for add-on modules, battery, solar and on-board charging.

Single-channel WisBlock relay switches up to 250 VAC/10 A for control of motors, lights and conveyors in IoT projects.

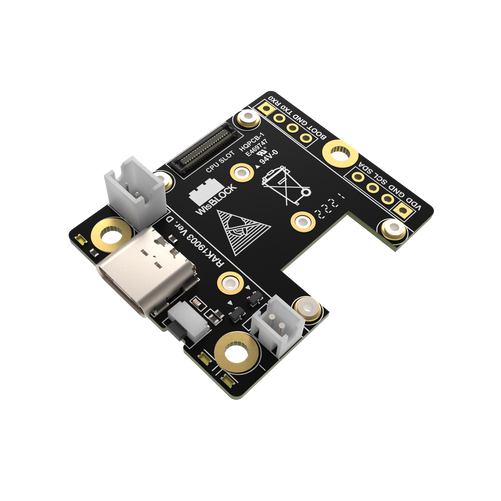

Modular power board offers USB-C, battery and solar charging to flash and test firmware in WisBlock projects.

Extend WisBlock with 10/100 Base-T Ethernet via SPI using WIZnet W5100S, featuring PoE headers, Wake-on-LAN, power-down modes and auto-MDIX negotiation.

SSD1680 2.13″ e-paper panel renders black, white or red images reflectively. Bi-stable architecture and ultra-low power suit IoT and maker builds.

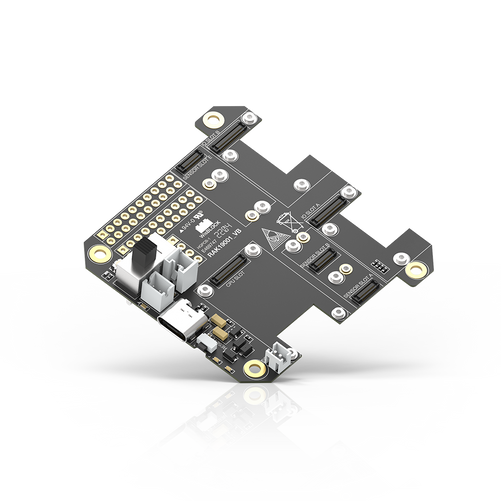

Modular base board with two IO and six sensor slots, GPIO pads and flexible power via USB-C, batteries or solar for compact IoT prototyping.

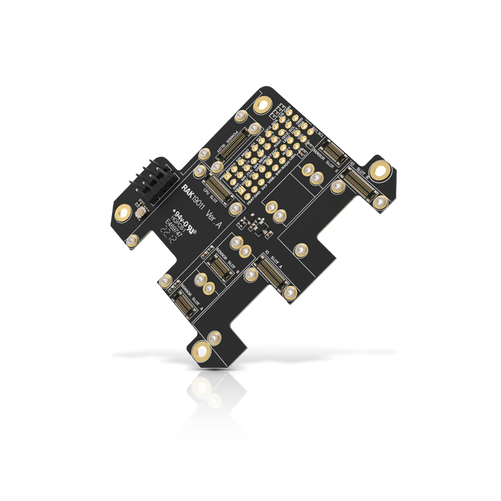

Modular IoT prototyping board handles MCU and sensor modules via plug-and-play slots, supports USB, LiPo or solar power and is optimised for low-power use.

PoE module uses Silver Ag99005MT to supply 5V/9W from IEEE802.3af-compliant and featuring short-circuit and thermal protection for WisBlock projects.

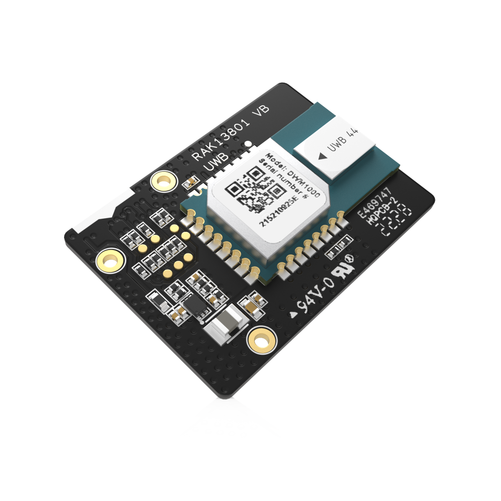

High-precision UWB module with Decawave DW1000 for real-time location and extended range in RTLS, asset tracking and factory automation.

Compact LoRa mesh baseboard for Meshtastic with WisBlock sensor slot, versatile antenna connectors and mounting holes for neat DIY networks.
