Search results for: &#039;header&#039;

A pack of the most commonly used headers!

$11.05 AUD, inc GST

2.54mm 1x40-Pin Right Male Header

A classic 0.1" | 2.54mm pitch 40-pin header row, with right-angle mounting for the edge of your board.

$0.41 AUD, inc GST

Header Kit for Raspberry Pi Pico

Configure your stack of Pico HATs however you want with this header kit!

$2.80 AUD, inc GST

This is a 1 × 8 set of 2.54mm | 0.1" separated female headers perfect for small microcontroller breakouts and similar boards to allow easy access to a row of pins

$0.22 AUD, inc GST

This connector is a single-row, 40-pin, straight male header strip that can be broken into smaller strips. Both sides of the strip are long, allowing for unique connections that cannot be made with standard male header strips. For example, this header can be used as a female-to-male adapter, and both sides are compatible with wire wrap.

0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight, Double-Sided

Brand: Pololu

$2.40 AUD, inc GST

Slim Header -Female 1x20

If stacking your boards too high is an issue check out this range of low-profile headers!

$0.72 AUD, inc GST

Slim Header -Female 1x40

If stacking your boards too high is an issue check out this range of low-profile headers!

$1.40 AUD, inc GST

2.54mm 1x40-Pin Right Female Header

This long row of headers has you covered when you have an "unconventional" free 40-pins on the edge of your PCB to interface or prototype with.

$1.05 AUD, inc GST

2.54mm 1x6-Pin Right Female Header

For six pins you need to interface to at a right angle, these headers would be an easy option.

$0.26 AUD, inc GST

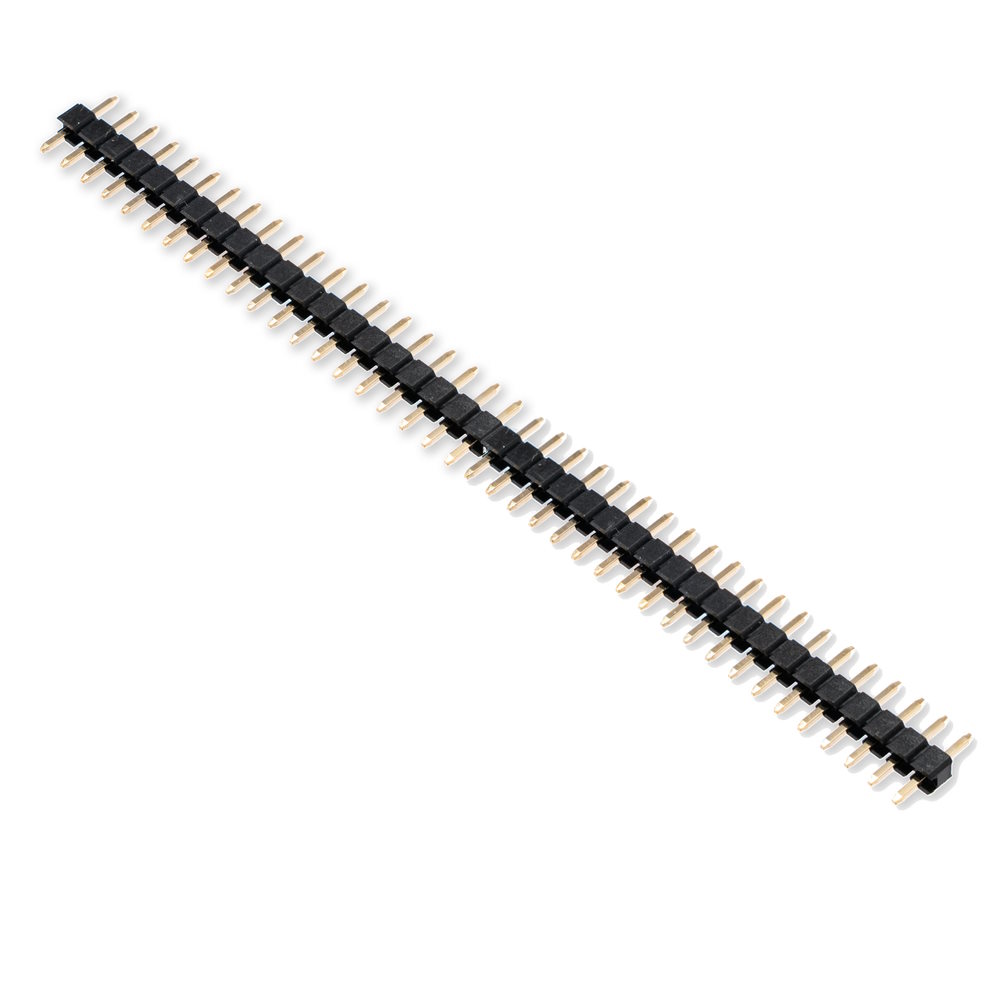

Slim Header -Male 1x40

If stacking your boards too high is an issue check out this range of low-profile headers!

$0.73 AUD, inc GST

This connector is a single-row, 7-pin, straight female header strip designed to match 0.1" male headers. The order quantity must be a multiple of two.

0.100" (2.54 mm) Female Header: 1x7-Pin, Straight

Brand: Pololu

$1.80 AUD, inc GST

Stack multiple plates, breakouts etc onto your Raspberry Pi Model B+ with this custom-made extra-tall and extra-long 2x20 female header. The female header part has...

Stacking Header for Pi A+/B+/Pi 2/Pi 3 - 2x20 Extra Tall Header

Brand: Adafruit

$6.30 AUD, inc GST

2.54mm 1x4-Pin Straight Female Header

Four header pins in a block for a permanent prototyping connection to your breakouts and PCBs.

$0.16 AUD, inc GST

2.54mm 1x3-Pin Straight Female Header

Got some 2.54mm | 0.1" pitch through holes on your PCB you need to connect to? Here's some headers you can use.

$0.11 AUD, inc GST

2.54mm 1x6-Pin Straight Female Header

Do you have a headerless breakout module, custom PCB, or other 2.54mm-pitch connection you need a reliable set of headers for? If so, then these are the kind of headers you're after.

$0.16 AUD, inc GST

If you already own the GPIO Hammer Headers Jig and just want some more headers, then these are the headers you are after.

GPIO Hammer Headers - Male

Brand: Pimoroni

$3.95 AUD, inc GST

2.54mm 1x8-Pin Right Female Header

Got 8-pins on the edge of your PCB that you need to interface off a right right-angle? If so, this is the header for you.

$0.37 AUD, inc GST

2.54mm 1x3-Pin Right Female Header

Need a simple three pin connection parallel to your board? There are not many easier options than a female header such as this.

$0.16 AUD, inc GST

Slim Header -Male 1x20

If stacking your boards too high is an issue check out this range of low-profile headers!

$0.42 AUD, inc GST

2.54mm 1x20-Pin Right Female Header

If you've got exactly twenty positions for pins on the edge of your board you want some female headers on to interface with, these headers have you covered.

$0.74 AUD, inc GST

2.54mm 1x4-Pin Right Female Header

For four pin positions you require a four pin header for, this ought to do the trick.

$0.21 AUD, inc GST

2.54mm 1x2-Pin Right Female Header

Got two 0.1" seperated points on the edge of a board you need to connect to easily and permanently? In that case, there aren't many more simple options than a female header such as this.

$0.17 AUD, inc GST

This is a super small, 2x5 pin male PTH header. This header is in the common configuration for JTAG applications. Each pin has a spacing of 1.27mm in between each...

Header - 2x5 Pin (Male, 1.27mm)

Brand: Sparkfun

$3.65 AUD, inc GST

Available with a lead time

2.54mm 1x12-Pin Straight Female Header

A header for twelve points on a PCB in a row that you want to connect to.

$0.32 AUD, inc GST

Low Profile 2x20 SMT header

A must have for your own low-profile PCB designs!

$1.60 AUD, inc GST

2.54mm 1x10-Pin Straight Female Header

Got a breakout board, microcontroller, or PCB of your choice you need to breakout ten pins from? If so, here's the run-of-the-mill header solution you're looking for.

$0.27 AUD, inc GST
