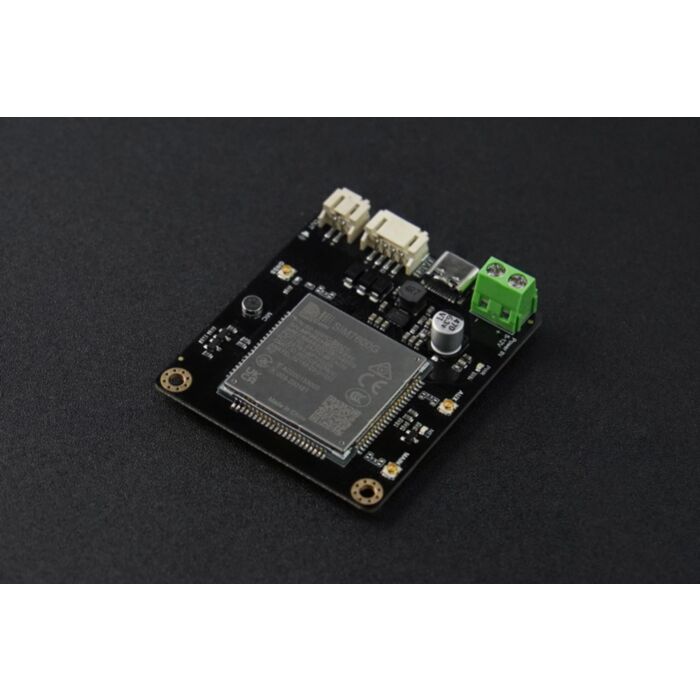

CAT1 SIM7600G 4G Communication and GNSS Positioning Module (Compatible with Raspberry Pi / LattePanda)

SKU: TEL0161 Brand: DFRobot

SIM7600G, a 4G CAT1 and GNSS positioning module, supports LTE-FDD, LTE-TDD, WCDMA, GSM, and can be used with Raspberry Pi and LattePanda SBCs for data,...

$119.95 AUD, inc GST

$109.05 AUD, exc GST

Available with a lead time
Expect dispatch between May 23 and May 27

Quantity Discounts:

5+ $104.68 (exc GST)
10+ $101.41 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

The SIM7600G is an integrated wireless communication module. It features 4G CAT1 with an uplink speed of 5Mbps and a downlink speed of 10Mbps and supports GNSS positioning (GPS, BD, GLONASS). The module is compatible with Raspberry Pi, Arduino, and LattePanda single-board computers, and can be used as a 4G network card.

The specific bands areas follows:

LTE-TDD: B34/B38/B39/B40/B41
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
GSM/GPRS/EDGE: 850/900/1800/1900MHz

Additionally, the SIM7600G module integrates support for various network protocols including TCP/IP, IPV4, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS, and more. This enables complex network communications via AT commands without the need to learn or understand the underlying network protocols, offering strong compatibility and ease of use.

The SIM7600G communication module features UART and USB interfaces. It can connect to Raspberry Pi, LattePanda single-board computers, and other devices via UART or as a USB network card through the USB interface. It supports drivers for mainstream operating systems such as Windows, Linux, and Android.

Furthermore, the SIM7600G module includes a microphone and audio power amplifier circuit, enabling data transmission, voice calls, and text messaging. When combined with GNSS positioning, it can be conveniently used in scenarios like anti-theft, logistics, and transportation.

The CAT1 SIM7600G 4G Communication Module can be connected to single-board computers like Raspberry Pi, LattePanda, etc., and can be used as a 4G network card for SBCs.

Connection Diagram of SIM7600G 4G Module and LattePanda 3 Delta single board computer

Connection Diagram of SIM7600G 4G Module and Raspberry Pi 5 single board computer

The SIM series wireless communication modules offer multiple products to choose from. This series of 4G products is differentiated by communication rates and satellite positioning capabilities. Click here to check the selection guide of 4G communication modules.

Functional Diagram of SIM7600G 4G Module

Connection Diagram of SIM7600G 4G Module and Arduino UNO

Features

Controlled via AT commands, eliminating the need to learn complex underlying network protocols.
Supports GNSS satellite positioning (GPS, GLONASS, BD).
Supports multiple frequency bands including LTE-FDD, LTE-TDD, WCDMA, and GSM.
SMS functionality supports MT, MO, CB, Text, and PDU modes.
Supports various network protocols such as TCP/IP, IPV4, Multi-PDP, FTP, FTPS, HTTP, HTTPS, and DNS.
Capable of data communication, voice calls, and SMS functionalities.
Provides USB network card functionality.

Applications

IoT data transmission and remote control
Mobile device monitoring
Logistics and transportation
Warehousing and theft prevention
Surveillance and positioning

Specification

Power Supply Voltage:
- Terminal connector: 5-12V
- TYPE-C: 5V
UART Interface:
- Voltage level: 3.3V-5V
- Physical interface: PH2.0-4P Gravity sequence standard
Audio Output Interface: PJ2.0-2P
Frequency Band Applicable Regions: Global
Supported Bands:
- LTE-TDD: B34/B38/B39/B40/B41
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
- UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
- GSM/GPRS/EDGE: 850/900/1800/1900MHz
4G Communication Rate: CAT1 (Uplink speed 5Mbps, Downlink speed 10Mbps)
GNSS Satellite Positioning: GPS, BD, GLONASS
4G Antennas:
- MAIN antenna IPEX male connector ×1
- AUX antenna IPEX male connector ×1
GNSS Antenna: IPEX antenna male connector ×1
Voice Microphone: ×1
SIM Card Slot: Push-lock type
LED Indicators:
- Power status: Red
- Network status: Blue
Operating Temperature: -40°C ~ 85°C
Product Dimensions: 60mm×52mm

Documents

Parts List

CAT1: SIM7600G 4G Communication Module x1
4G TEL, GPS antenna pack x1
Triple-cut universal SIM card adapter x1
Gravity PH2.0-4P Communication Connection Cable ×1
