Breakout Board for nRF24LU1+ with RP-SMA

SKU: WRL-09034 Brand: Sparkfun

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

This is a breakout board for Nordic’s nRF24LU1+ system-on-chip wireless transceiver. The nRF24LU1+ features a fully integrated USB 2.0 compliant device controller, which allows for a very compact wireless USB dongle. The nRF24LU1+ is compatible with our nRF24L01+ 2.4GHz RF transceivers as well. Additional features include an 8-bit application microcontroller, 32 kB flash memory, 6 GPIO pins, SPI and UART support, and up to 2Mbps on air data rates.

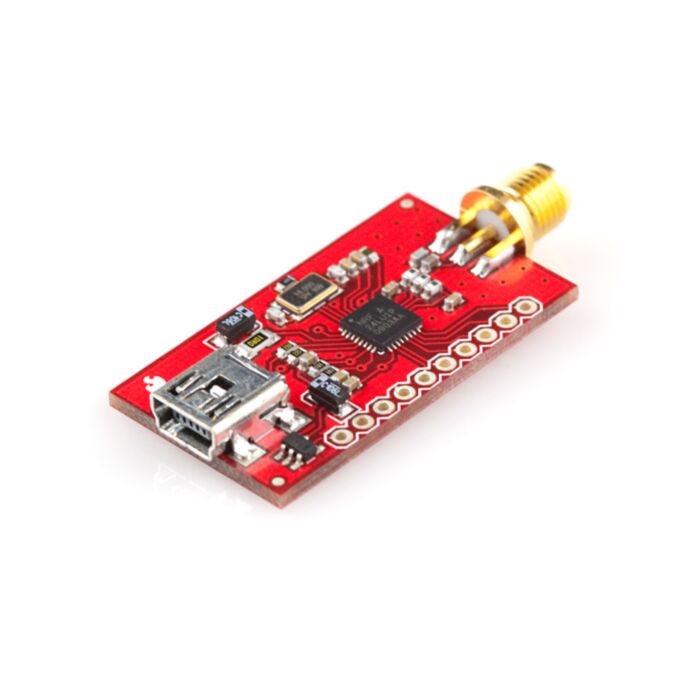

This breakout board includes all parts as shown in the pictures. The included antenna connector is an RP-SMA, see the related items below for compatible antennas. The board also includes a 3.3VDC voltage regulator, and all necessary supporting components. A mini-B USB connector is also populated on the board, allowing you to take full advantage of the nRF24LU1+’s USB 2.0 support.

Features:

All necessary components to make full use of the nRF24LU1+
Worldwide 2.4GHz ISM band operation
Up to 2 Mbps on air data rate
Full speed USB 2.0 compliant device controller
External ?60ppm 16MHz crystal
Enhanced ShockBurst^TM hardware link layer
On air compatible with nRF24LE1, LU1, L01+, L01, nRF2401A,
02, E1 and E2
Up to 12 Mbps USB transfer rate
2 control, 10 bulk/interrupt and 2 ISO endpoints
Enhanced 8-bit 8051 compatible microcontroller
6 general purpose digital input/output pins
Hardware SPI and UART
3 16-bit timers/counters
Supports flash programming and upgrades over USB

Dimensions:

Board: 1.45x0.8" (1.79x0.8" with RP-SMA and USB connectors)
