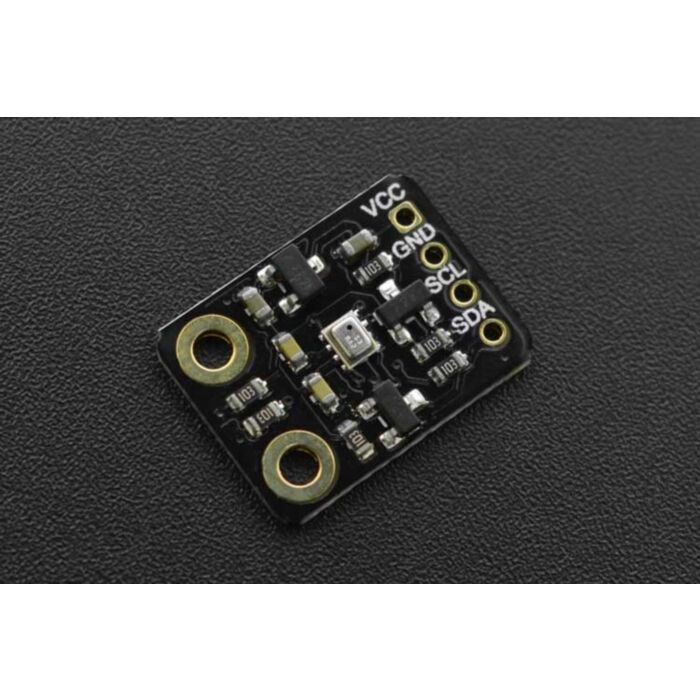

BMP280 Digital Pressure Sensor Module(V1.0)

Rating:
100% of 100
SKU: SEN0372 Brand: DFRobot
This is a breakout version of BMP280 Barometric Pressure Sensor from DFRobot with temperature and pressure measurement functions, supporting Arduino code control...
$9.70 AUD, inc GST
$8.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 6th of Dec

Quantity Discounts:

  • 10-25 $8.46 (exc GST)
  • 25+ $8.20 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a breakout version of BMP280 Barometric Pressure Sensor from DFRobot with temperature and pressure measurement functions, supporting Arduino code control.

Housed in an extremely compact package, the BMP280 is based on Bosch’s proven Piezo-resistive pressure sensor technology featuring high EMO robustness, high accuracy and linearity, and long term stability. Numerous device operation options offer the highest flexibility to optimize the device regarding power consumption, resolution, and filter performance.

Barometric sensors are usually used to measure barometric pressure and temperature. But besides that, they can also measure altitude and relative floor height due to the fact that there is a certain relationship between altitude and barometric pressure. As for navigation, the barometric pressure sensor can be used to enhance GPS positioning or realize 3D indoor navigation with the IMU sensor.

Features

  • High Accuracy
  • I2C Communication
  • Small Size
  • Low Power Consumption

Specification

  • Operating Voltage: 3.3V-5.5V
  • Communication Interface: I2C(5V compatible)
  • Default I2C Address: 0x76
  • Pressure Measuring Range: 300~1100hPa
  • Relative Accuracy: ±0.12hPa(±1m)
  • Absolute Accuracy: ±1hPa(±8.33m)
  • Temperature Measuring Range: 0°C ~ 65°C
  • Temperature Measuring Accuracy: 0.01°C
  • Outline Dimension: 18x11.5mm/0.71x0.45”
  • Mounting Hole Position: 13mm
  • Mounting Hole Size: inner diameter 2mm/outer diameter 3.7mm

Documents

Parts List

  • BMP280 Digital pressure sensor module(V1.0) x1
  • 2.54 Single Row 4PIN Connector x1
