BG95 EVB Development Board Designed For QuecPython
Available with a lead time
Expect dispatch between Jan 03 and Jan 06
Quantity Discounts:
- 6-12 $81.04 (exc GST)
- 12+ $79.36 (exc GST)
Restrictions apply to this RF Equipment for use in Australia:
- Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
- If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.
For use in other locations around the world:
- Follow region-specific frequency spectrum rules.
A declaration of use will need to be submitted during checkout.

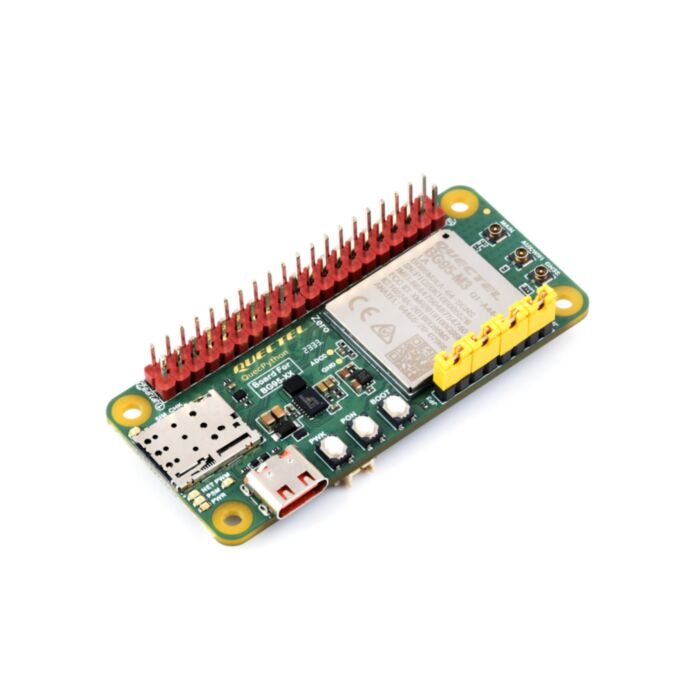

The BG95-M3 Zero development board is equipped with BG95-M3 module, which is a multi-mode LPWA module supporting LTE Cat M1 / LTE Cat NB2 / EGPRS. It is 3GPP Rel-14 compliant and offers maximum data rate of 588 kbps downlink and 1119 kbps uplink under LTE Cat M1. Features ultra-low power consumption with built-in MCP as well as the ARMCortex A7 processor supporting ThreadX.
- Equipped with BG95-M3 main module, supports LTE Cat M1 / LTE Cat NB2 / EGPRS networking, applicable across global regions
- Onboard 40PIN GPIO header, compatible with most Raspberry Pi HATs
- 5 LEDs for indicating module operating status
- Onboard Type-C port for easy development with just a USB Type-C cable
- Supports PPP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, PING, MQTT, LwM2M, CoAP, IPv6 protocols, etc.
- Supports GNSS positioning (GPS, GLONASS, BDS, Galileo, QZSS)
- Onboard Nano SIM card slot, supports 1.8V SIM card, and is designed near the edge of the board for easy insertion and removal of SIM card
What's On Board
- BG95-M3 module
- TPS63020DSJR power IC
- TLV75533PDRVR power IC
- NCP114AMX180TBG power IC
- TXS0104EYZTR voltage level translator
- Nano-SIM card slot
- NET Network indicator
- PSM Sleep indicator
- PWM function indicator
- PWR Power indicator
- SIM_CHK indicator
lights up when SIM card is inserted - Power ON/OFF button
- PSM wake-up button
- BOOT button
Press before powering on to force firmware burning mode - USB detection ON/OFF
Normally closed: USB can be connected normally;
Normally open: Type-C supplies power only to the evaluation board, used for module power consumption measurement - Raspberry Pi GPIO Header
Compatible with Raspberry Pi HATs, for more details, please refer to Pinout Definition - Power ON/OFF jumper
Connect: auto turn on, short press PWK button to restart
Disconnect: short press PWK button to power on, long press to power off - 1.8V output jumper
Connect: outputs 1.8V externally
Disconnect: used to test power consumption - Module power supply jumper
Connect: DCDC to power the module - GNSS active power supply selection
Connect: enable GNSS active power supply - USB Type-C port
- Main antenna connector
- AUX antenna connector
- GNSS antenna connector
- Battery power supply header
Supports 2.5V-5.5V battery (Note: the board cannot be powered by USB port and battery at the same time)
Pinout
Dimensions
Resources
Shipping List
- 1 x BG95-M3 Zero
