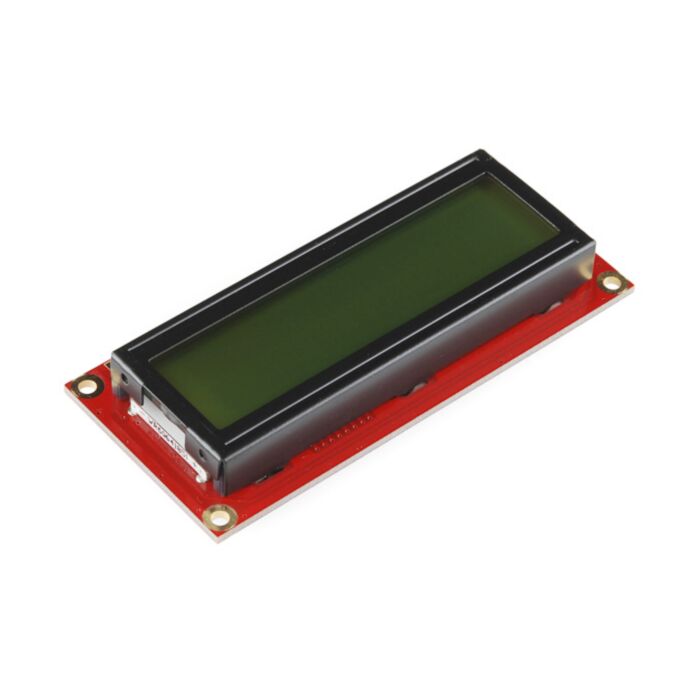

Basic 16x2 Character LCD - Black on Green 3.3V

SKU: LCD-09053

$20.70 AUD, inc GST
$18.82 AUD, exc GST

More Views

Basic 16x2 Character LCD - Black on Green 3.3V
20.7 AUD

SKU: LCD-09053

$20.70 AUD, inc GST
$18.82 AUD, exc GST
In stock, with a short lead time. 25 units dispatch in 3 to 6 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 20th of Dec with Express Post within Australia.
Shipping Offer

This is a 16 character by 2 line display that runs at 3.3V. Utilizes the common ST7066/HD44780 parallel interface (datasheet). Interface code is widely available for many different controllers and systems. You will need ~11 general I/O pins to interface to this LCD screen. Includes yellow LED backlight.

Features:

  • High quality STN 16x2 character LCD
  • 3.3V power supply
  • Yellow LED Backlight
  • 5x8 dot characters
  • ST7066 controller
  • 1/16 duty cycle

Dimensions: 0.34 x 1.4 x 3.2" (8.6 x 36 x 80mm)

Documents:

Documentation and Resources:
