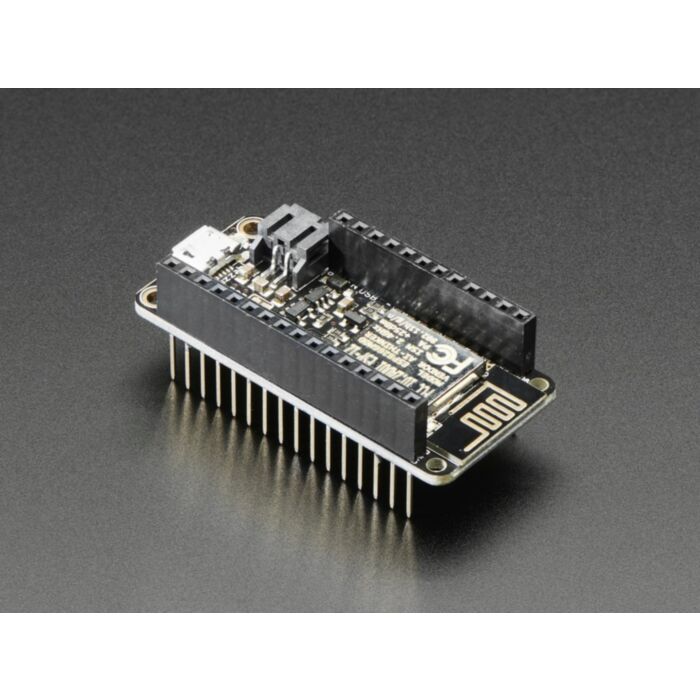

Assembled Feather HUZZAH w/ ESP8266 WiFi With Stacking Headers

SKU: ADA3213

$33.24 AUD, inc GST
$30.22 AUD, exc GST

More Views

Assembled Feather HUZZAH w/ ESP8266 WiFi With Stacking Headers
33.2388 AUD

SKU: ADA3213

$33.24 AUD, inc GST
$30.22 AUD, exc GST
In stock, ships today if ordered before 2PM
Delivered by Fri, 18th of Aug

Feather is the new development board from Adafruit, and like its namesake it is thin, light, and lets you fly! Adafruit designed Feather to be a new standard for portable microcontroller cores.

This is the Adafruit Feather HUZZAH ESP8266 - Adafruit's take on an 'all-in-one' ESP8266 WiFi development board with built in USB and battery charging. Its an  ESP8266 WiFi module with all the extras you need, ready to rock! Adafruit have other boards in the Feather family, check'em out here.

At the Feather HUZZAH's heart is an ESP8266 WiFi microcontroller clocked at 80 MHz and at 3.3V logic. This microcontroller contains a Tensilica chip core as well as a full WiFi stack. You can program the microcontroller using the Arduino IDE for an easy-to-run Internet of Things core. Adafruit wired up a USB-Serial chip that an upload code at a blistering 921600 baud for fast development time. It also has auto-reset so no noodling with pins and reset button pressings.

To make it easy to use for portable projects, Adafruit added a connector for any of Adafruit's 3.7V Lithium polymer batteries and built in battery charging. You don't need a battery, it will run just fine straight from the micro USB connector. But, if you do have a battery, you can take it on the go, then plug in the USB to recharge. The Feather will automatically switch over to USB power when its available.

Here's some handy specs!

  • Measures 2.0" x 0.9" x 0.28" (51mm x 23mm x 8mm) without headers soldered in
  • Light as a (large?) feather - 9.7 grams
  • ESP8266 @ 80MHz with 3.3V logic/power
  • 4MB of FLASH (32 MBit)
  • Built in WiFi 802.11 b/g/n
  • 3.3V regulator with 500mA peak current output
  • CP2104 USB-Serial converter onboard with 921600 max baudrate for uploading
  • Auto-reset support for getting into bootload mode before firmware upload
  • 9 x GPIO pins - can also be used as I2C and SPI
  • 1 x analog inputs 1.0V max
  • Built in 100mA LiPoly charger with charging status indicator LED, can also cut a trace to disable the charger
  • Pin #0 red LED for general purpose blinking. Pin #2 blue LED for bootloading debug & general purpose blinking
  • Power/enable pin
  • 4 mounting holes
  • Reset button

Comes fully assembled and tested, with a USB interface that lets you quickly use it with the Arduino IDE or NodeMCU Lua. (It comes preprogrammed with the Lua interpreter). This version comes pre-soldered with Feather stacking headersClick here for the un-soldered versionLipoly battery and USB cable not included (but we do have lots of options in the shop if you'd like!)

Check out Adafruit's tutorial for all sorts of details, including schematics, files, IDE instructions, power management and more!

Technical Details

  • 23mm x 51mm x 19mm / 0.9" x 2" x 0.74"
  • Weight: 9.4
