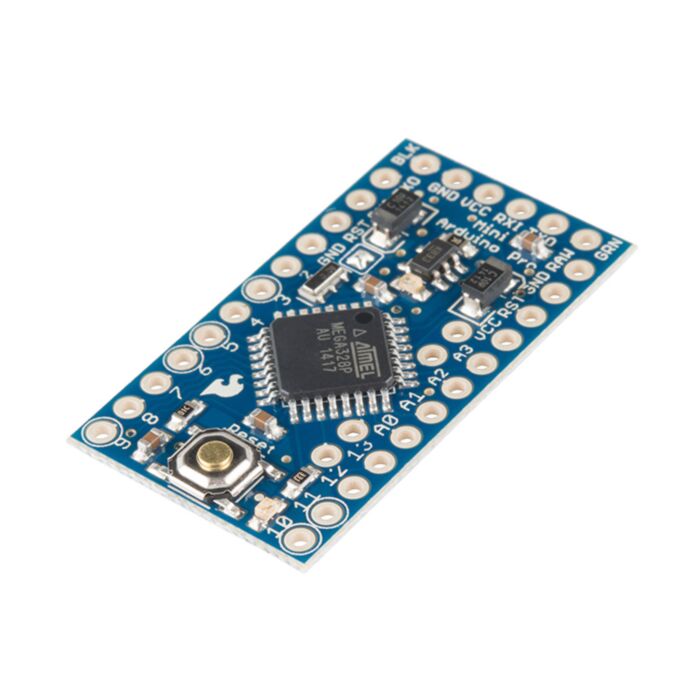

Arduino Pro Mini 328 - 3.3V/8MHz

SKU: DEV-11114

$15.43 AUD, inc GST
$14.03 AUD, exc GST

More Views

Arduino Pro Mini 328 - 3.3V/8MHz
15.43 AUD

SKU: DEV-11114

$15.43 AUD, inc GST
$14.03 AUD, exc GST
2 reviews 0 5 5
In stock, ships same business day if ordered before 2PM
Delivered by Wed, 26th of Sep
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

It’s blue! It’s thin! It’s the Arduino Pro Mini! SparkFun’s minimal design approach to Arduino. This is a 3.3V Arduino running the 8MHz bootloader. Arduino Pro Mini does not come with connectors populated so that you can solder in any connector or wire with any orientation you need. We recommend first time Arduino users start with the Uno R3. It’s a great board that will get you up and running quickly. The Arduino Pro series is meant for users that understand the limitations of system voltage (3.3V), lack of connectors, and USB off board.

We really wanted to minimize the cost of an Arduino. In order to accomplish this we used all SMD components, made it two layer, etc. This board connects directly to the FTDI Basic Breakout board and supports auto-reset. The Arduino Pro Mini also works with the FTDI cable but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work. There is a voltage regulator on board so it can accept voltage up to 12VDC. If you’re supplying unregulated power to the board, be sure to connect to the “RAW” pin on not VCC.

The latest and greatest version of this board breaks out the ADC6 and ADC7 pins as well as adds footprints for optional I2C pull-up resistors! We also took the opportunity to slap it with the OSHW logo.

Can’t decide which Arduino is right for you? Arduino buying guide!

Note: A portion of this sale is given back to Arduino LLC to help fund continued development of new tools and new IDE features.

Dimensions: 0.7x1.3" (18x33mm)

Features:

  • ATmega328 running at 8MHz with external resonator (0.5% tolerance)
  • Low-voltage board needs no interfacing circuitry to popular 3.3V devices and modules (GPS, accelerometers, sensors, etc)
  • 0.8mm Thin PCB
  • USB connection off board
  • Weighs less than 2 grams!
  • Supports auto-reset
  • 3.3V regulator
  • Max 150mA output
  • Over current protected
  • DC input 3.3V up to 12V
  • On board Power and Status LEDs
  • Analog Pins: 8
  • Digital I/Os: 14

Documents:

Replaces:DEV-009220

This product is listed in:

Documentation and Resources:
Educational Workshops
  • Arduino Workshop for Beginners
  • Welcome to the Arduino Workshop, where you'll be able to follow our guided course which covers everything you'll need to know in order to create your own Arduino projects and become a leveled up maker. My name is Sam and along with being a maker my...
  • C Programming for Makers
  • Welcome to the C Programming Workshop for Makers! Here you'll be able to follow along with our series of easily digestible videos that cover everything you'll need to know to on your way with C programming and start making awesome projects. As you pr...
  • Arduino Tide Gauge
  • I used an Arduino and a US-100 ultrasonic sensor to make an extremely low-cost tide gauge. This project measures the tide by sensing the distance to water using a US-100 ultrasonic sensor. The device has a 3D printed base and uses a peanut butter jar to create a waterproof housing. The 3D printed base fits atop a PVC tube which acts as a stilling well to dampen wave effects. Timestamped data is logged to a mi...
  • Coffee Grinder With Arduino
  • Using a few bits and pieces, this ordinary coffee grinder now has two presets to run the motor for a programmable length of time. The idea being that the grinder running for a set amount of time will deliver a certain amount of coffee each button press meaning the beans can be stored unground, keeping them fresher for longer. I completed this project for a friend, Ian, who lives for coffee. Ian wanted the same functionality in h...
  • My ghostbusters proton pack
  • Hi all. Thought I'd share with you my modded Spirit Halloween proton pack. It's about 80% scale, which is plenty big enough for my 7-year-old son, and still looks decently sized on adults. As soon as I learned of this pack, 5-year-old me just had to get one. And I had just gotten my Arduino beginners kit a week earlier. I knew what had to be done :)...
  • Handheld UV Meter
  • UV is important to reptiles (and people) in processing vitamin D3 which is needed to absorb calcium. Without it reptiles often suffer from Metabolic Bone Disease (MBD) which leads to weak bones and can be fatal. Thankfully, pet shops have the answer, UV producing globes which can stave off the dreaded MBD. These are in the form of T8 florescent tubes or compact florescent globes and go for $50+ each. And, yeah, they need to be re...
  • Tabot
  • Tabot is a robotic tablet dispenser. It is designed to help elderly people maintain their independence and help anyone who has tablets remember to take them on time.

Product Comments


Customer Reviews

  1. Review by Rick verified purchaser
    Rating
    100

    This is a robust and versatile microcontroller. Beware, however, of the FTDI breakout you are sold to transfer programs to it. There is a 3.3V or 5V version of the breakout available which is useless to the point of being dangerous. The unwary will fry their whole project. (Posted on 30/06/2018)

  2. Review by Terence verified purchaser
    Rating
    100

    I like the sleek form and reduced power consumption (vs uno) (Posted on 11/07/2017)
