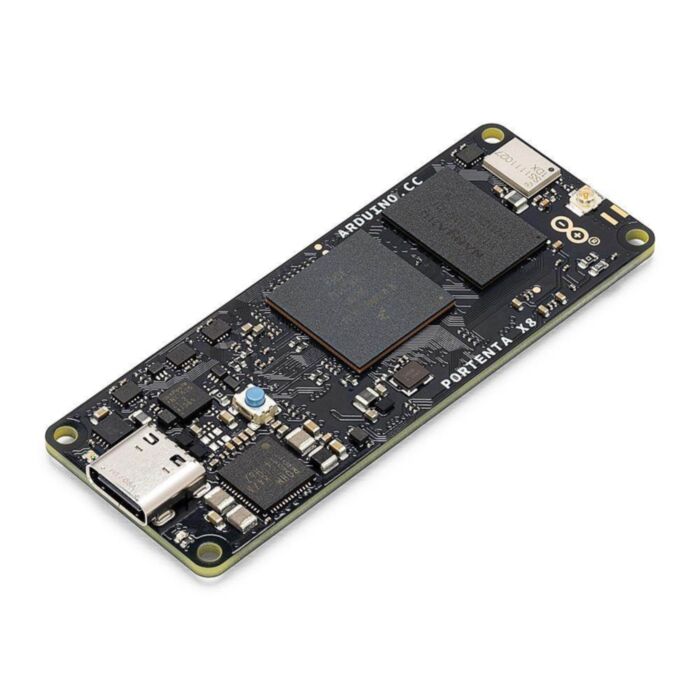

Arduino Portenta X8

SKU: ABX00049 Brand: Arduino

Portenta X8 is a powerful, industrial-grade SOM with Linux OS preloaded onboard, capable of running device-independent software thanks to its modular container architecture.

$444.95 AUD, inc GST

$404.50 AUD, exc GST

Available with a lead time
Expect dispatch between May 27 and May 27

Quantity Discounts:

5-10 $400.45 (exc GST)
10+ $396.41 (exc GST)

Unleash the power of 9 cores within a compact form factor. Deploy AI algorithms and ML on the edge.

Two industrial products in one, combining Arduino’s availability of libraries/skills with container-based Linux distribution
Outstanding computational density - a total of 9 cores within a compact form factor
Multi-processor architecture allowing power-optimized processing
Leverage popular programming languages like Python, Java and Ruby among others
Real-time I/O and fieldbus/control on a dedicated core
Deploy powerful AI algorithms and machine learning on the edge
Secure OS/applications updates over-the-air
Industrial-grade security at the hardware level, thanks to its crypto chip on dedicated bus
Leverage the Arduino ecosystem to expand Portenta capabilities
Implement multi-protocol routing with a single module
Compatible with other Arduino Portenta products

The groundbreaking Portenta X8 is a powerful, industrial-grade System On Module (SOM) with Linux OS preloaded onboard, making it a plug-and-play solution capable of running device-independent software thanks to its modular container architecture. Onboard Wi-Fi/Bluetooth^® Low Energy connectivity allows you to carry out OS/application updates remotely, always keeping the Linux kernel environment at top performance levels.

The X8’s hybrid combination of microprocessor and microcontroller offers unprecedented flexibility to simultaneously and securely run Linux apps and perform real-time tasks.

Overall, this powerful SOM features a total of 9 cores within a compact form factor of 66.04 x 25.40 mm. It has an an NXP^® i.MX 8M Mini Cortex®-A53 quad-core up to 1.8GHz per core and 1x Cortex®-M4 up to 400MHz, plus an STMicroelectronics STM32H747 dual-core Cortex^®-M7 up to 480Mhz + M4 32-bit Arm^® MCU up to 240Mhz.

In addition, Portenta X8 achieved PSA Certification and includes the NXP SE050C2 hardware security element to provide key generation, accelerated crypto operations and secure storage. X8 also achieved Arm SystemReady certification and integrated Parsec services, making it one of the first Cassini Products or Cloud Native Edge devices available to developers in the market. Enabling the migration of cloud-native workloads from the Cloud to the edge, the X8 contributes to a cloud-native developer experience across Arm’s diverse and secure IoT ecosystem.

Specifications

Processor	NXP® i.MX 8M Mini - 4x ARM® Cortex® -A53 core up to 1.8GHz, 1x ARM Cortex -M4 core up to 400 MHz
Microcontroller	STMicroelectronics STM32H747AII6 Dual ARM® Cortex® M7/M4 IC - 1x ARM Cortex -M7 core up to 480 MHz 1x ARM Cortex -M4 core up to 240 MHz
External Memory	2 GByte Low Power DDR4 DRAM; 16 GByte eMMC
USB-C	USB-C High Speed; Host and Device operation; Power Delivery support
Connectivity	1Gbit Ethernet interface (PHY); Wi-Fi; Bluetooth® Low Energy
Security	NXP® SE050C2 Crypto on a separate secure bus
Dimensions	66,04 mm x 25,40 mm
Certifications	PSA from ARM®; Arm® SystemReady IR (multiple distributions)
Interfaces	CAN; PCIe; SAI; MIPI; DSI; SPI; I2S; I2C; UART; PDM
Operating Temperature	-40° C to +85° C (-22° F to 185°F)

Resources

Datasheet
