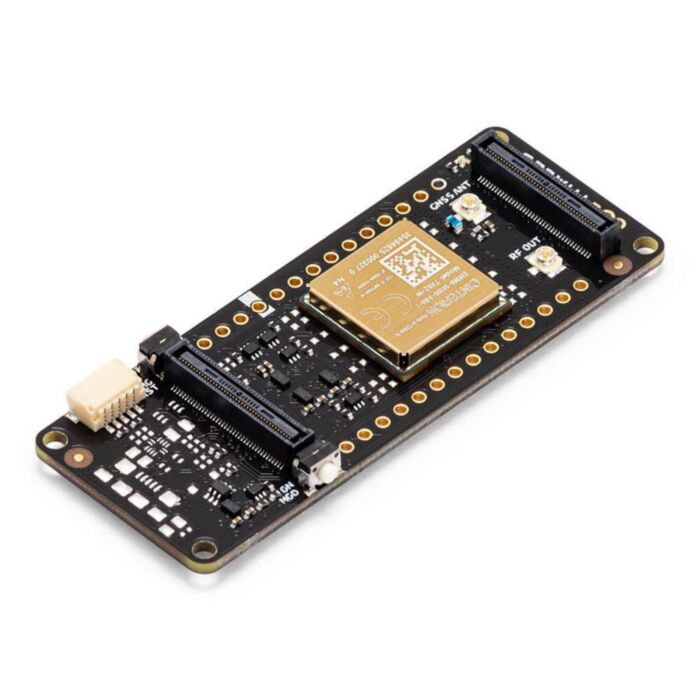

Arduino Portenta CAT.M1/NB IoT GNSS Shield

SKU: ASX00027 Brand: Arduino
Bring cellular communication and positioning to your Portenta boards.
$139.95 AUD, inc GST
$127.23 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 19 and Jan 23

Quantity Discounts:

  • 25+ $120.86 (exc GST)
  • 100+ $114.51 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Add cellular low-power wide area networking and multi-constellation positioning to a Portenta project. The shield integrates a Cinterion TX62 wireless module by Thales to deliver Cat.M1 and NB-IoT cellular links together with GNSS positioning.

Use it to build asset tracking, remote monitoring and smart-city endpoints that need long battery life and wide coverage. The shield plugs onto Portenta boards and can also be used with Arduino MKR form-factor boards, plus it supports GPS, GLONASS, Galileo and BeiDou for global positioning.

Technical Specifications

  • Wireless module: Cinterion TX62 (Thales).
  • Cellular protocols: LTE Cat.M1, NB-IoT (NB1/NB2); 3GPP Release 14 compliant.
  • UMTS support: UMTS bands 1, 2, 3, 4, 5, 8, 12(17), 13, 18, 19, 20, 25, 26, 27, 28, 66, 71, 85.
  • LTE data rates:
    • Cat.M1: DL up to 300 kbps, UL up to 1.1 Mbps.
    • Cat.NB1: DL up to 27 kbps, UL up to 63 kbps.
    • Cat.NB2: DL up to 124 kbps, UL up to 158 kbps.
  • Short Messaging Service (SMS): point-to-point mobile terminated (MT) and mobile originated (MO) text mode; PDU mode supported.
  • GNSS: supports GPS, GLONASS, Galileo and BeiDou.
  • Power profile: low-power cellular design (module choice optimised for battery operated IoT applications).
  • Antenna: default shield option does not include GSM/UMTS antenna; external antenna connection supported (antenna sold separately).

Additional Resources

What’s Included

  • 1 x Portenta Cat. M1/NB IoT GNSS Shield (shield only; GSM/UMTS antenna sold separately).
