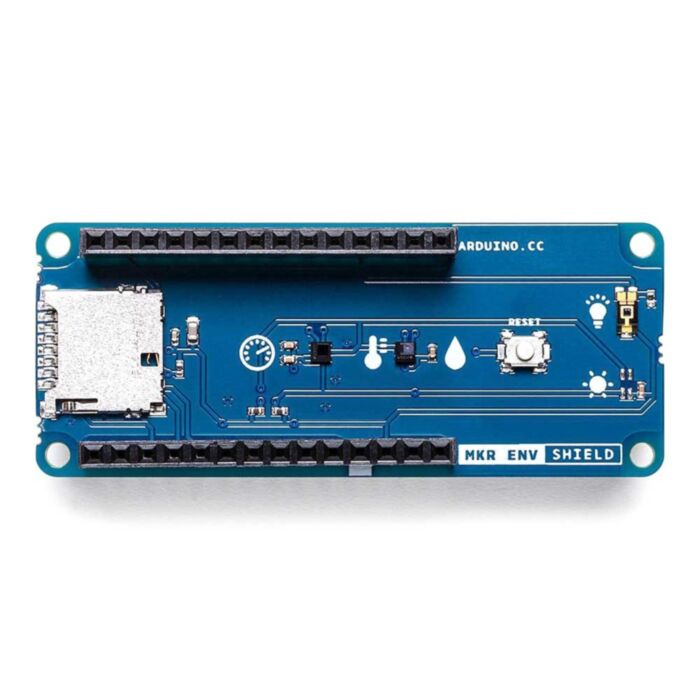

ARDUINO MKR Enviromental Shield rev2

Rating:
100% of 100
SKU: ASX00029 Brand: Arduino
The MKR ENV Shield allows a MKR board to acquire environmental data collected by an array of sensors.
$82.90 AUD, inc GST
$75.36 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 06 and Jan 09

Quantity Discounts:

  • 5-10 $74.61 (exc GST)
  • 10+ $73.85 (exc GST)
  • 30+ $73.10 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The MKR ENV Shield allows a MKR board to acquire environmental data collected by an array of sensors.

These sensors are of the latest generation and measure:

  • Atmospheric pressure
  • Temperature and humidity
  • Ultraviolet UVA intensity Ultraviolet UVB intensity,
  • UV Index (calculated)
  • Light intensity (in LUX)

To help you build projects and store the data collected locally, this shield has a slot for a microSD card (not provided).

There is a ready-to-use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.

Sensors used:

  • ST LPS22HB : atmospheric pressure
  • ST HTS221 : temperature and humidity
  • VISHAY TEMT6000 : Lux of the ambient.
  • VISHAY VEML6075 : UltraViolet wavelengths A / B

Technical Specifications

  • ICs: LPS22HB, TEMT6000
  • Input Voltage: 3.3V
  • Operating Voltage: 3.3V
  • Ranges:
    • Pressure: 260 to 1260 hPa
    • rH sensitivity: 0.004% rH/LSB
    • Humidity accuracy: ± 3.5% rH, 20 to +80% rH
    • UVA, UVB and UVBI measurment
  • Communication: I2C/Analog
  • Length: 61 mm
  • Width: 25 mm
  • Weight: 32 gr.
