Arduino Mega 2560 R3 (Atmega2560 - assembled) - Mega!

SKU: ADA191

$60.95 AUD, inc GST
$55.41 AUD, exc GST

More Views

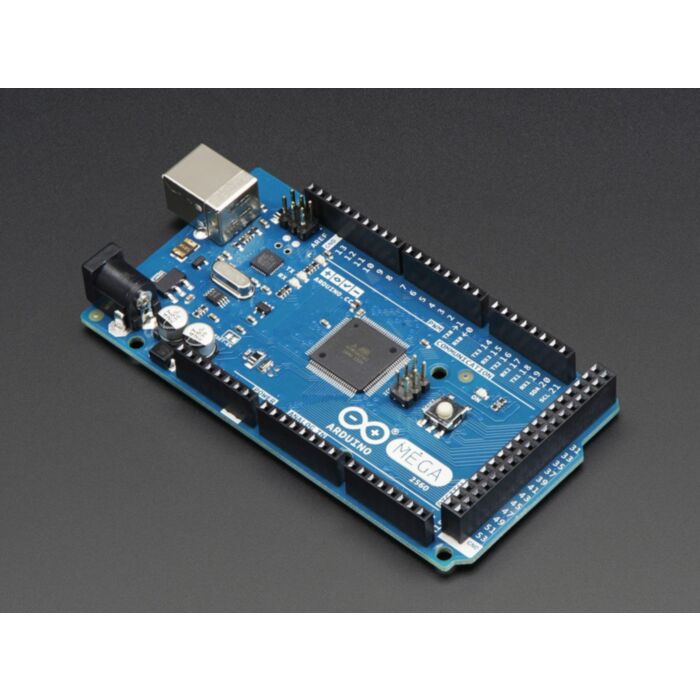

Arduino Mega 2560 R3 (Atmega2560 - assembled) - Mega!

SKU: ADA191

$60.95 AUD, inc GST
$55.41 AUD, exc GST

Retired Product

Replaced by: A000067
This product has been replaced by: A000067

As of October 5th, 2015 the Arduino Mega R3 is now being manufactured in the United States in partnership with Adafruit's friends at arduino.cc!

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560 (datasheet). It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.

Resellers: If you're looking to buy a Arduino Mega, please contact [email protected]

Technical Details

Dimensions:

  • Length:101.98mm/4.01in
  • Width:53.63mm/2.11in
  • Height:15.29mm/0.60in
  • Weight:34.9g/1.23oz

Specs (from http://arduino.cc/en/Main/ArduinoBoardMega):


MicrocontrollerATmega2560
Operating Voltage5V
Input Voltage (recommended)7-12V
Input Voltage (limits)6-20V
Digital I/O Pins54 (of which 14 provide PWM output)
Analog Input Pins16
DC Current per I/O Pin40 mA
DC Current for 3.3V Pin50 mA
Flash Memory256 KB of which 8 KB used by bootloader
SRAM8 KB
EEPROM4 KB
Clock Speed16 MHz
