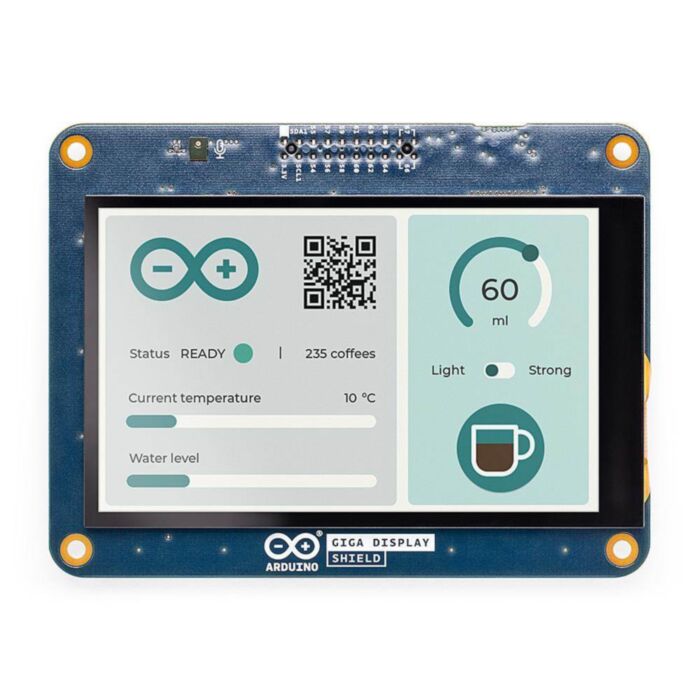

Arduino GIGA Display Shield

SKU: ASX00039 Brand: Arduino
With the Arduino GIGA Display Shield, effortlessly deploy graphic interfaces to your Arduino GIGA R1 WiFi projects using our innovative touch screen solution, which includes a digital microphone, 6-axis IMU, and Arducam® connector, enabling seamless creation of handheld devices or dashboards.
$144.95 AUD, inc GST
$131.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 5-10 $130.45 (exc GST)
  • 10+ $129.14 (exc GST)
  • 30+ $127.82 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introducing the GIGA Display Shield, a touch screen solution designed to effortlessly deploy graphic interfaces in your projects. Leveraging the new pin header connector in the middle of GIGA R1 WiFi, this shield offers seamless integration and enhanced functionalities.

With the GIGA Display Shield, you gain access to an array of features, including a digital microphone, 6-axis IMU, and Arducam connector. These added capabilities allow you to fully utilize the other 54 available pins, making it incredibly convenient to create handheld devices or dashboards to control your project.

Experience the convenience of building intuitive interfaces with ease, thanks to the GIGA Display Shield's user-friendly design and comprehensive features. Elevate your project's functionality and user experience with this cutting-edge solution.

Technical Specifications

BoardNameArduino® GIGA Display Shield
SKUASX00039
ConnectorsCameraSOCKET 2ROW 20POS VERTICAL PASS THROUGH (Arducam compatible)
Display VideoF32Q-1A7H1-11020
Display TouchF32Q-1A7H1-11008
DisplayKD040WVFID026-01-C025A
Size3.97”
Resolution480x800 RGB
Color16.7M
Touch ModeFive points and Gestures
InterfaceI2C
SensorsIMUBMI270
MicrophoneMP34DT06JTR

Documentation

FAQ

IS THIS DISPLAY MULTITOUCH-ENABLED?

Yes, the display supports up to 5 simultaneous touch points.

HOW DO I CONNECT THE GIGA DISPLAY SHIELD TO THE GIGA R1 WIFI?

The Giga Display shield connects via the middle headers (J5 and J6) on the GIGA R1 WiFi. Attach the shield from the bottom, leaving the top side of the GIGA R1 WiFi available for additional shields.

WILL I STILL HAVE ACCESS TO ALL PINS WHEN THE DISPLAY IS ATTACHED?

Yes, you will retain access to all pins on the top side of the board (54 pins) even when the display is connected.

DOES THE SHIELD REQUIRE AN EXTERNAL POWER SUPPLY?

No, the GIGA Display Shield does not require an external power supply. It is powered directly through the connection.

WHICH CAMERAS ARE COMPATIBLE WITH THE SHIELD?

The GIGA Display Shield is fully compatible with 20-pin DVP cameras from Arducam, such as the OV7675. For more information, visit the Arducam catalog of compatible cameras.
