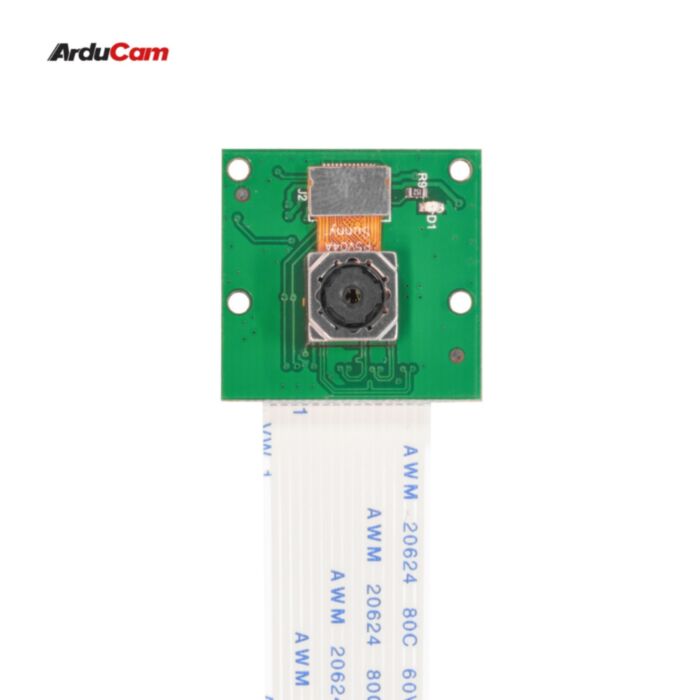

Arducam 5MP OV5647 1080p Autofocus Camera

SKU: AC-B0176 Brand: Arducam

This is an ArduCam 5MP Camera Module for the Raspberry Pi with controllable motorized autofocus, it uses the same interface as the official Raspberry Pi Cameras.

$36.80 AUD, inc GST
$33.45 AUD, exc GST

Quantity Discounts:

  • 10-25 $32.12 (exc GST)
  • 25+ $31.11 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The official camera modules have fixed-focus lenses, which are either glued or need manual adjustment. However, Arducam thinks that your focus matters and has released this motorized focus camera for Raspberry Pi. This Arducam camera module is designed for you to control the focus on a camera for Raspberry Pi via software, so you can see closer and see where you want to see.

To learn more about autofocus with Raspberry Pi camera modules, we recommend you read Raspberry Pi Camera Autofocus: The Complete Guide

Applications

  • IoT cameras
  • Robot cameras
  • Wildlife cameras
  • Other battery-powered products
  • Can be used in MCU, Raspberry Pi, ARM, DSP, FPGA platforms

Specifications

Sensor Omnivision OV5647 sensor
Optical Size 1/4” (OV5647)
Resolution 5MP 2592×1944
Frame Rates 1080p 30 fps, 720p 60fps, 480p 90fps
Focus Distance 80mm to infinity
Field of View(FOV) 54°(H), 44°(V)
Focus Type Motorized Focus
IR Sensitivity Integral IR-cut filter
Full-frame SLR lens equivalent 35mm
Camera Board Size 24mm x 25mm
Peaking Current 300mA

Includes

  • Raspberry Pi not included
  • Pi Zero conversion cable not included
  • 1 × Acrylic case for the camera module
  • 1 × 15cm flex ribbon cable for Raspberry Pi Model A&B series
  • 1 × 5MP OV5647 camera board with motorized lens for Raspberry Pi
  • Motorized autofocus function needs to be operated by using python scripts for this camera version. Please see the following documentation for details

Documentation

This product is listed in:

Raspberry Pi>Camera>Camera Modules
