Adafruit Perma-Proto Half-sized Breadboard PCB - 3 Pack!

SKU: ADA571

$20.95 AUD, inc GST
$19.05 AUD, exc GST

More Views

Adafruit Perma-Proto Half-sized Breadboard PCB - 3 Pack!
20.95 AUD

SKU: ADA571

$20.95 AUD, inc GST
$19.05 AUD, exc GST
1 reviews 0 5 5
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Customers have asked Adafruit to carry basic perf-board, but Adafruit never liked the look of most basic perf: its always crummy quality, with pads that flake off and no labeling. Then Adafruit thought about how people actually prototype - usually starting with a solderless breadboard and then transferring the parts to a more permanent PCB. That's when Adafruit realized what people would really like is a proto board that makes it easy!

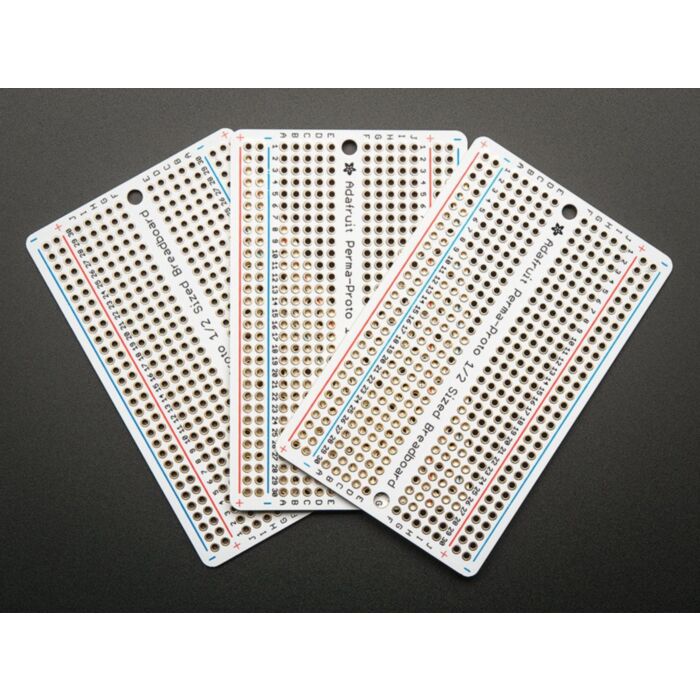

This proto-board is the PCB you always wish you had, but never realized it! Adafruit took the basic layout of a half-sized breadboard and turned that into a beautiful PCB. The top side has a white silkscreen, and the same markings you're familiar with, to make transferring components easy. The bottom has the 5-hole pad design that matches a classic breadboard, with 4 power bus lines on the sides, and no mask so you can easily cut traces when necessary. Adafruit used 1.2mm diameter drill holes so even parts with big leads will fit. All holes are thru-plated for strength - these wont peel off with rework. The finish is a gold plate - you won't get oxidation like with bare copper perf! There are also two mounting holes so you can attach the PCB to your project box. They'll also fit nicely in an Altoids-sized mint tin

These are so handy, Adafruit decided to put them in a pack of 3. Once you use a Perma-Proto board, you'll never go back!

Technical Details

  • 30 rows of double 5-hole rows
  • 4 power rails with positive/negative markings
  • 3.2" x 2.0" (81mm x 51mm), 0.063" thick FR4
  • 1.2mm / 0.047" drill holes
  • 2 x 0.125" or 3.2mm mounting holes 2.9" apart

This product is listed in:

Documentation and Resources:
  • Water Tank Level Sensor
  • Imagine getting home from work, its winter, its cold. You have a shower to warm up and half way through your shower...... your water stops. You wrap a towel around yourself, remove the shampoo from your eyes and go out into the cold to swap the tanks as the water tank you were using had run dry. This was a common occurrence in my house......... but not anymore. Now I can keep visually see the level of water in my water tanks on m...

Product Comments


Customer Reviews

  1. Review by Chris verified purchaser
    Rating
    100

    A great quality proto-board perfect size for small projects. (Posted on 10/05/2017)
