Adafruit NeoPixel LED Strand 20 LED 4 Pitch

SKU: ADA3631 Brand: Adafruit

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

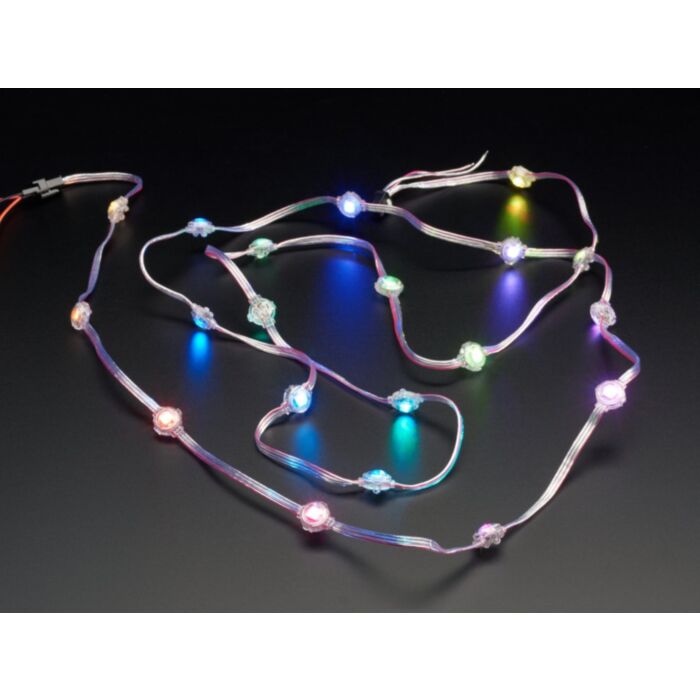

Attaching NeoPixel strips to your costume can be a struggle as the flexible PCBs can crack when bent too much. So how to add little dots of color? Use these stranded NeoPixel dots! They're very small, so they're easy to embed into any structure, costume, or wearable. Each dot is enclosed in a small plastic weatherproof button, Adafruit don't recommend dunking these underwater but they can survive temporary outdoor usage. Best of all the buttons have little plastic hooks molded into the back so they can be tack-sewn in place.

Each strand has 20 dots with a single NeoPixel inside with cabling connecting them. The dots are 4" apart, We also have a version that is 2" apart.

NeoPixels are 5050-sized LEDs with an embedded microcontroller inside the LED. You can set the brightness of each R/G/B/W. Each LED acts like a shift register, reading incoming data on the input pins, and then shifting the previous data out on the output pin. By sending a long string of data, you can control an infinite number of LEDs, just tack on more or disconnect unwanted LEDs at the end. The PWM is built into each LED-chip so once you set the brightness you can stop talking to the strip and it will continue to PWM all the LEDs for you.

These NeoPixel strands have 20 digitally-addressable pixel LEDs per meter. Adafruit have a tutorial showing wiring, power usage calculations, example code for usage, etc. Please check it out!

Technical Details
