Adafruit NeoPixel LED Side Light Strip - Black 60 LED

Rating:
100% of 100
SKU: ADA3636 Brand: Adafruit
Fancy new side light LED strips are a great alternative for folks who have loved and used Adafruit LED strips for a few years but want gorgeous, glowy light emitting...
$37.95 AUD, inc GST
$34.50 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 21 and Nov 26

Quantity Discounts:

  • 10-25 $33.12 (exc GST)
  • 25+ $32.08 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

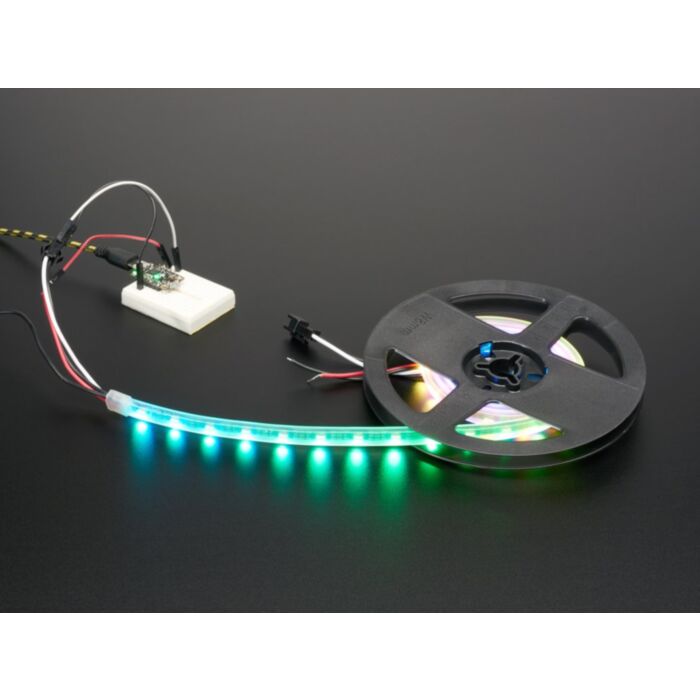

Fancy new side light LED strips are a great alternative for folks who have loved and used Adafruit LED strips for a few years but want gorgeous, glowy light emitting at 90 degrees. They're very skinny so you can run them along a thin edge and curve them around shapes and corners. These look awesome for accent lighting, back lighting, edge lighting, etc!

This is the 60 LED-per-meter version of Adafruit's Side Light strips. We also have 90 LED/m and 120 LED/m on black flex PCB.

The strip is constructed of flexible black PCB material with weatherproof sheathing. You can cut this stuff pretty easily with wire cutters. There is a cut line halfway down the strip. Solder to the 0.1" copper pads, and you're good to go! Of course, you can also connect strips together to make them longer, just watch how much current you need!

These strips come in 1-meter reels with a 2-pin JST SM connector on each end. To wire up these strips we suggest picking up some JST SM plug and receptacle cables for the signal wires. For the power wires, you will also probably want a 2.1mm DC jack to wire in, so you can connect one of Adafruit's 5V wall adapters to power it.

Adafruit have a tutorial showing wiring, power usage calculations, example code for usage, etc. Please check it out!

Technical Details

  • Storage temperature: -40~ +80°C
  • Operating temperature: -25~ +60°C
  • Strip width: 8mm
  • LED pitch: 17mm
