Adafruit Music Maker MP3 Shield for Arduino w/3W Stereo Amp - v1.0

Rating:
100% of 100
SKU: ADA1788 Brand: Adafruit
Bend all audio files to your will with the Adafruit Music Maker shield for Arduino! This powerful shield features the VS1053, an encoding/decoding (codec) chip that...
$69.75 AUD, inc GST
$63.41 AUD, exc GST

Available with a lead time
Expect dispatch between Mar 04 and Mar 05

Quantity Discounts:

  • 6-12 $60.87 (exc GST)
  • 12+ $58.97 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Bend all audio files to your will with the Adafruit Music Maker shield for Arduino! This powerful shield features the VS1053, an encoding/decoding (codec) chip that can decode a wide variety of audio formats such as MP3, AAC, Ogg Vorbis, WMA, MIDI, FLAC, WAV (PCM and ADPCM). It can also be used to record audio in both PCM (WAV) and compressed Ogg Vorbis. You can do all sorts of stuff with the audio as well such as adjusting bass, treble, and volume digitally.

All this functionality is implemented in a light-weight SPI interface so that any Arduino can play audio from an SD card. There's also a special MIDI mode that you can boot the chip into that will read 'classic' 31250Kbaud MIDI data from an Arduino pin and act like a synth/drum machine - there are dozens of built-in drum and sample effects! But the chip is a pain to solder, and needs a lot of extras. That's why Adafruit spun up the best shield, perfect for use with any Arduino Uno, Leonardo or Mega.

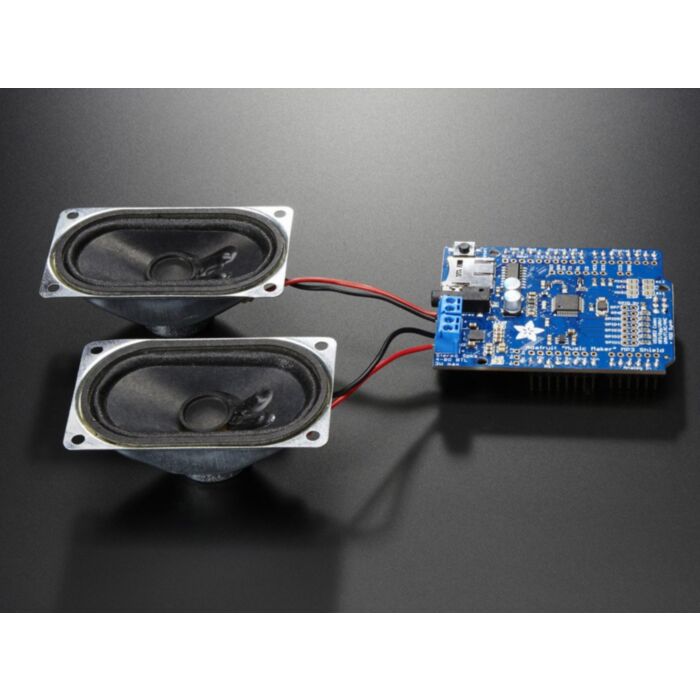

This version of the shield includes an onboard 3W/channel stereo audio amplifier that can drive 4 or 8 ohm speakers. It's the same amplifier as in Adafruit's TS2012 breakout, a great class D amplifier that sounds good and is power-conscious for portable/battery usage. Volume control is handled by the VS1053 chip. We also have a version without an amplifier, when only line/headphone out is required.

Adafruit believe this is the best MP3 playing shield you can get, and at a great price too. Here are some specs:

  • Features the VS1053B codec chip - decodes Ogg Vorbis, MP3/MP2/MP1, MP4, AAC, WMA, FLAC, WAV/PCM, MIDI. Encodes Ogg or WAV/PCM
  • Stereo audio out with proper audio filter caps and ground reference so it can be safely connected directly to headphones, a stereo system or other powered speakers
  • 7 extra GPIO's that can be written or read through the Arduino Library for reading buttons or lighting LEDs
  • MicroSD card socket, for any FAT16/FAT32 formatted SD card from 64Mb or greater.
  • Full 3.3/5V level shifting for SD and MP3 chipsets
  • Works with Arduino Uno, Mega, or Leonardo
  • Built in MIDI synth/drum machine with dozens of instruments
  • Plenty of optional breakouts for pins like the card-detect and microphone input

Each order comes with one fully-assembled and tested shield, 2 2-pin terminal blocks, a stick of 0.1" male header and 2x3 female header for the ICSP connection. Some light soldering is required to attach the through-hole headers to the PCB for plugging into the Arduino as well as the terminal blocks for the speakers. Speakers, $1 headphones, SD card and Arduino not included!

Adafruit are wrapping up the full tutorial with photos of the shield, but for now Adafruit have a detailed tutorial with lots of information about the VS1053 as well as instructions for how to use Adafruit's Arduino library that will get you playing sound effects in under 30 minutes

//www.youtube.com/embed/ZsjDlnBgfTg?start=240

Technical Details

Revision history:

  • Aug 20, 2014: Adafruit updated the analog section to have more filtering, which should improve audio output quality (even more!) There are no wiring or code changes.

Specs:
