Adafruit FPC Breakout for Raspberry Pi 5 DSI or RP2350 HSTX - 22 Pin 0.5mm

SKU: ADA6014 Brand: Adafruit

This little breakout board is specifically designed for use with Raspberry Pi 5 or our RP2350 boards that have an 'HSTX' connector. These devices...

$5.25 AUD, inc GST

$4.77 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 10 and Apr 14

Quantity Discounts:

10+ $4.58 (exc GST)
25+ $4.44 (exc GST)

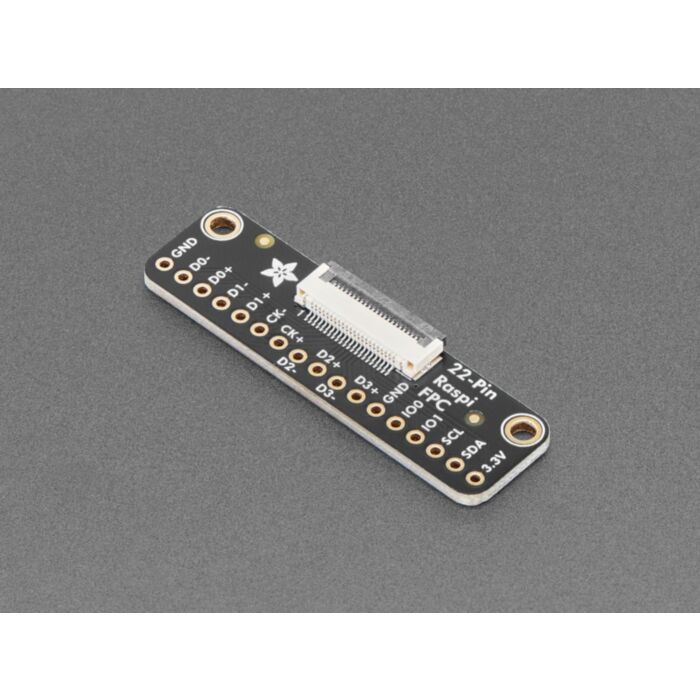

This little breakout board is specifically designed for use with Raspberry Pi 5 or our RP2350 boards that have an 'HSTX' connector. These devices use a semi-standard FPC connector to pipe high speed data for video transmission over differential pairs. But maybe you want to make a custom setup or adapt to a different product? This doohickey is your pal.

Basically, you can use a 22-pin 0.5mm pitch FPC cable to connect between the two boards to get access to the four (Pi 5) or three (HSTX) differential data channels, plus the differential clock. There's also 3.3V power output, I2C, and two GPIO. Adafruit placed a fairly big ground plane and Adafruit did Adafruit's best to route the signals cleanly but any time you solder wires or use a bread/perf-board with high-speed signal there's a risk of signal degradation!

Each order comes with one breakout board, 22-pin FPC cable is not included.

Technical Details

Product Dimensions: 44.8mm x 12.7mm x 3.7mm / 1.8" x 0.5" x 0.1"

Product Weight: 2.1g / 0.1oz
