Adafruit CharliePlex LED Matrix Bonnet - 8x16 Blue LEDs

SKU: ADA3467 Brand: Adafruit
You won't be able to look away from the mesmerizing patterns created by this Adafruit CharliePlex LED Matrix Display Bonnet. This 16x8 LED display can be placed...
$26.30 AUD, inc GST
$23.91 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 07 and Jun 10

Quantity Discounts:

  • 10-25 $22.95 (exc GST)
  • 25+ $22.24 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

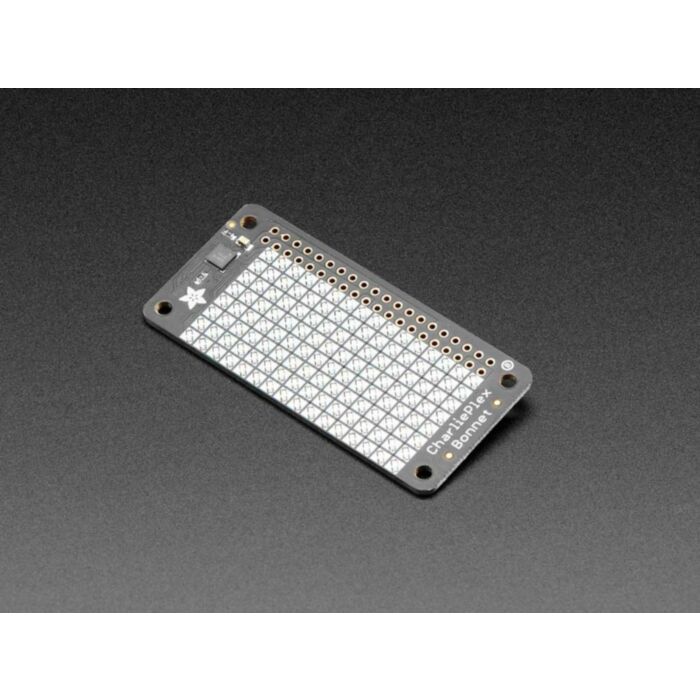

You won't be able to look away from the mesmerizing patterns created by this Adafruit CharliePlex LED Matrix Display Bonnet.  This 16x8 LED display can be placed atop any Raspberry Pi computer with a 2x20 connector, for a beautiful, bright grid of 128 charlieplexed LEDs. It even comes with a built-in charlieplex driver that is run over I2C.

We carry these Bonnets in a few vivid colors - this is the blue LED matrix.

What is particularly nice about this Wing is the I2C LED driver chip has the ability to PWM each individual LED in a 16x8 grid so you can have beautiful LED lighting effects, without a lot of pin twiddling. Simply tell the chip which LED on the grid you want lit, and what brightness and it's all taken care of for you. You get 8-bit (256 level) dimming for each individual LED.

The IS31FL3731 is a nice little chip - and it runs happily over 3.3V power. Inside is enough RAM for 8 separate frames of display memory so you can set up multiple frames of an animation and flip them to be displayed with a single command. Since it uses I2C, it takes up only the SDA/SCL pins on your Pi and can share those pins with other I2C devices and sensors.

Comes fully assembled, no soldering required, so you can plug it in immediately. To program it, you'll use Adafruit's CircuitPython library, which works with Linux computers like Raspberry Pi. After a pip install, run some of the examples to display simple graphics or text.

Technical Details

Product Dimensions: 65.0mm x 30.0mm x 6.8mm / 2.6" x 1.2" x 0.3"

Product Weight: 8.2g / 0.3oz
