Adafruit ANO Rotary Navigation Encoder Breakout - Pre-Soldered Encoder

SKU: ADA6311 Brand: Adafruit

The ANO rotary encoder wheel is a funky user interface element is reminiscent of the original clicking scroll wheel interface on the first iPods. It's...

Special Price $17.30 AUD, inc GST

Regular Price $23.01 AUD, inc GST

$15.73 AUD, exc GST

Special pricing ends 14 July 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Apr 28 and May 01

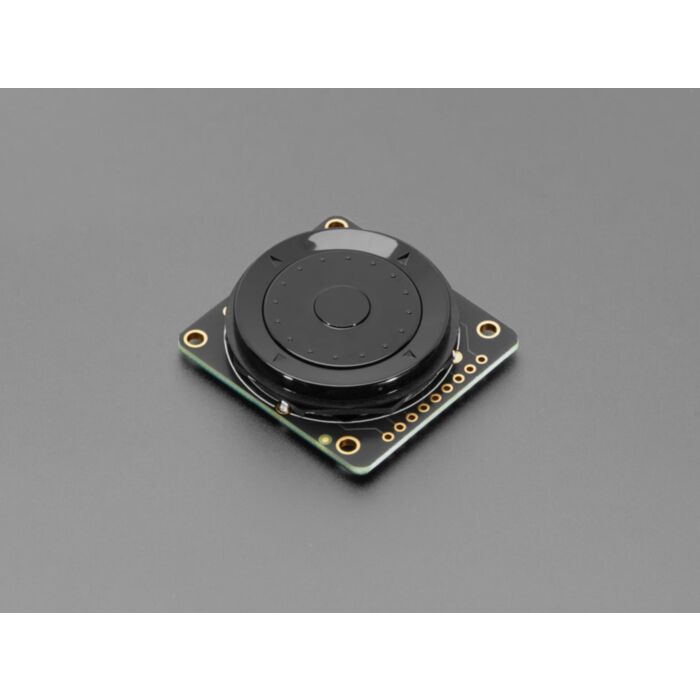

The ANO rotary encoder wheel is a funky user interface element is reminiscent of the original clicking scroll wheel interface on the first iPods. It's a nifty kit, but the pin-out is a little odd, so they made a handy breakout board that converts the funky pin set into a straightforward, breadboard-friendly header strip.

This version comes with the encoder pre-soldered in!

There are no pull-up or pull-down resistors on this PCB. Use your microcontroller's button and rotary encoder library/hardware support to interface with the pins.

You'll need 7 GPIO total: 5 buttons and 2 rotary encoder pins. There are also two COMmon pins, which you can set to ground or VCC - usually ground so that you can use the microcontroller internal pull-ups for the button/encoders. Note to make Adafruit's wiring simple, Adafruit's example code uses GPIO to the COM's and then sets them to outputs, but you can just wire them directly.

This embedded content is from a site (www.youtube.com, flickr.com, etc) that does not comply with the Do Not Track (DNT) setting now enabled on your browser.

Clicking through to the embedded content will allow you to be tracked by the embed provider.

Technical Details

Learn

Primary Guide: ANO Directional Navigation and Scroll Wheel Rotary Encoder and Breakout A nifty, little directional rotary encoder kit!

This product is listed in:

Sensors>Encoders
