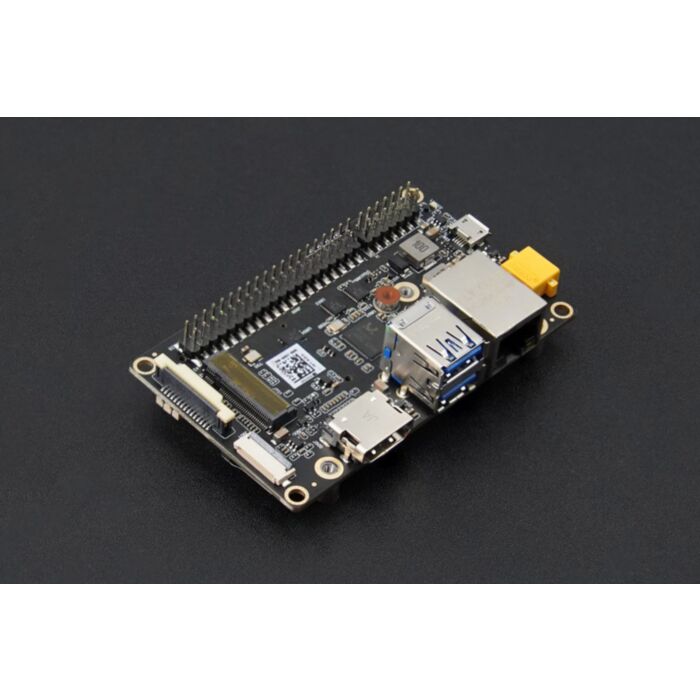

This is a carrier board compatible with the NVIDIA Jetson Orin NX/Nano core module. It is equipped with a Gigabit Ethernet (10/100/1000) port, enabling fast data transfer. It features two USB 3.0 Type-A ports, one USB 3.0 0.5mm pitch 20P ZIF, and one USB 2.0 micro AB port, providing versatile connectivity options.
This carrier board supports the NVIDIA Jetson Orin NX/Nano and offers a rich array of peripheral interfaces. With a 15-pin CSI camera connector and HDMI port, users can capture and display high-quality video content. Storage and wireless connectivity can be expanded through the onboard M.2 Key M and M.2 Key E interfaces. It also includes a fan interface (5V PWM) and an RTC connector.
It supports a wide voltage input range of 9-20V DC and can operate in temperatures ranging from -25°C to 65°C. With its compact size of 87x52x26mm, it can be seamlessly integrated into various applications, providing flexibility and ease of use.
Interface diagram of NVIDIA Jetson Orin NX/Nano carrier board (A603)
