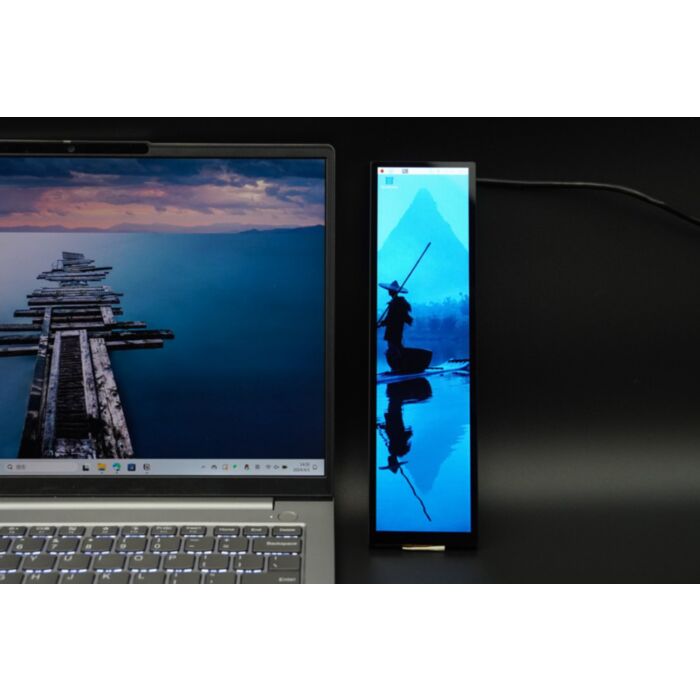

8.8" 480×1920 IPS Bar Touch Display (Compatible with Raspberry Pi 3B/3B+/4B)

This is a unique 8.8-inch capacitive touch bar-type display with a resolution of 480×1920 and a distinctive aspect ratio of 4:1. It supports the Raspberry Pi DSI interface, allowing for the quick development of specialized Raspberry Pi applications.

In information display projects, the display screen is the most direct medium of experience. It needs to present information in an intuitive and neatly organized manner while accommodating richer content. Compared to conventional aspect ratio displays, bar-type displays, with their unique aspect ratio, allow for more intuitive and focused presentation of information. They are widely used in scenarios such as station advertising, supermarket advertising, elevator advertising, smart homes, and in-vehicle displays.

In terms of product quality and Specifications, this bar-type display adopts IPS panel technology, optical bonding, and offers a brightness of 600cd/m², combined with a high-definition resolution of 480×1920. This ensures wide viewing angles, fast response times, fine and bright images, and high color reproduction. Additionally, the support for five-point capacitive touch makes project interaction more concise and intuitive.

So, what cool and useful applications can be created with a Raspberry Pi-supported touch bar-type display?

Counter and shelf advertising screens

Based on the Raspberry Pi's powerful multimedia capabilities, dynamic videos of products, product Introductions, and prices can be simultaneously displayed on the bar-type screen.

Desktop screens

The study or office desk is always an important application scenario for displays. The unique aspect ratio of the bar-type display allows it to be used for functions such as photo album display, information and news push, music spectrum analyzer, video and animation playback, and weather display. It can showcase a personalized desktop in a cool way.

Measurement instruments and equipment

In measurement devices, using a bar-type display allows for neater and more intuitive layout, with richer content displayed without the need for frequent switching or paging. Additionally, the bar-type aspect ratio allows for smaller device sizes, making installation and use more flexible.

Not limited to the above scenarios, bar-type displays have even more diverse and interesting applications, such as gaming consoles, smart home appliance modifications, advanced calculators, robot control centers, and IoT control terminals, among others.

Function Indicator Diagram of 8.8" Touch display

Wiring Diagram of 8.8" Touch display and Raspberry Pi Single Board Computer

Features

• 480×1920 high-definition resolution
• 1:4 bar-type display aspect ratio
• 600cd/m² high brightness
• IPS panel
• Full bonding process
• 5-point capacitive touch
• Raspberry Pi DSI driver
• Compatible with Raspberry Pi 3B/3B+/4B

Applications

• Music spectrum analyzer
• Advanced calculator
• Mini weather station
• Simulator gaming console
• IoT terminal data panel
• Electronic photo album
• Touchscreen digital control panel
• Car modification dashboard
• Measurement instrument panel
• Robot display panel

Specification

Basic Parameters

• Operating Voltage: 5V
• Power Interface: USB-C
• Static Working Current: Approximately 700mA
• Display Interface: Raspberry Pi DSI
• 2P - Spring Plunger: Power Interface, 5V 1.5A
• Raspberry Pi Mounting Hole Size: 58mm x 49mm
• Driver Board PCB Size: 93mm×51mm×1.6mm
• Weight: 278g

Screen Parameters

• LCD Size: 8.8 inch
• Resolution: 480×1920
• Pixel Pitch (mm): 0.114(H) x 0.114(V)
• Pixel arrangement: RGB Vertical stripe
• NTSC: 50%
• Viewing Angle: 170°
• Refresh Rate: 60Hz
• Contrast Ratio: 800 : 1
• Response Time: 30ms
• Brightness: 600cd/m²
• Bonding Method: Optical bonding
• Touch Points: 5-point capacitive
• Viewing Area (mm): 54.72(W)×218.88(H)
• Dimensions (mm): 64.3(W)×231.3(H)×18(T)

Documents

• Product wiki
• 3D_File
• 2D_CAD

Parts List

• 8.8" 480×1920 DSI Bar Touch display for Raspberry Pi x1
• FPC DSI Cable 50mm x1
• M2.5*6 Mounting Screws x8
