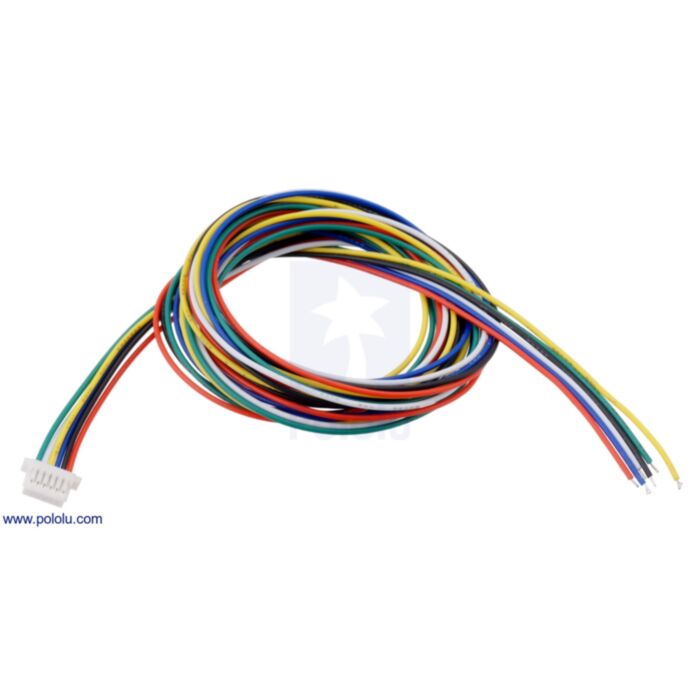

This cable is designed to work with Pololu's Micro Metal Gearmotor Encoders with top-entry connector and with side-entry connector. It consists of six 28 AWG color-coded wires that are terminated on one end by a female JST SH-type connector.
The other ends of the wires are unterminated and can be cut to match the length of your application. You can use Pololu's male or female crimp pins and crimp connector housings to make a connector for the unterminated end of the cable that is compatible with standard solderless breadboards, perfboards, 0.1" male headers, and 0.1" female headers.
This cable also works with Pololu's JST SH-style connector breakout board (available in top-entry and side-entry versions):
Use with Micro Metal Gearmotor Encoders
When used with Pololu's encoders, the wire color scheme is as follows:
Color | Function |
---|---|
Red | motor power (connects to one motor terminal) |
Black | motor power (connects to the other motor terminal) |
Blue | encoder Vcc |
Yellow | encoder A output |
White | encoder B output |
Green | encoder GND |
For more information on how to use the encoders, see the encoder product pages.
Available options
Pololu's single-ended cables are available in three cable lengths:
Pololu also have twisted female-female cables with JST SH-style connectors on both ends available in five lengths:
People often buy this product together with:
1000:1 Micro Metal Gearmotor HPCB 12V with Extended Motor Shaft |
Magnetic Encoder Pair Kit with Top-Entry Connector for Micro Metal Gearmotors, 12 CPR, 2.7-18V |
Magnetic Encoder Pair Kit with Side-Entry Connector for Micro Metal Gearmotors, 12 CPR, 2.7-18V |
Dimensions
Pins: | 1×6 |
---|---|
Length: | 75 cm |
Weight: | 7 g |
General specifications
Gender: | Female-unterminated |
---|---|
Wire gauge: | 28 AWG |
Connector: | JST SH-type |
