5304 Series Saturn Planetary Gear Motor (139:1 Ratio, 80mm Length 8mm REX Shaft, 130 RPM, 3.3 - 5V Encoder)
In stock, ships same business day if ordered before 2PM
Delivered by Mon, 18th of Nov
Quantity Discounts:
- 10-25 $155.41 (exc GST)
- 25+ $147.24 (exc GST)

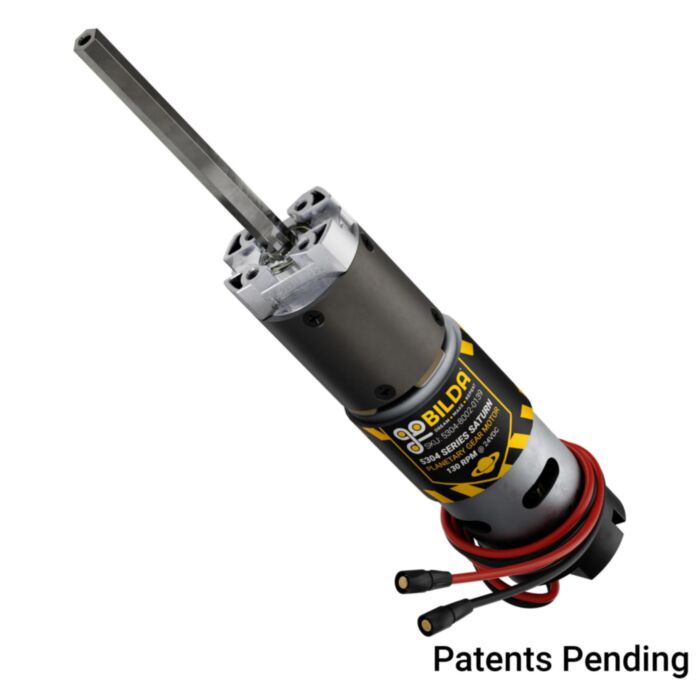

This 139:1 ratio 5304 Series Saturn Planetary Gear Motor consists of a 24V brushed DC motor driving a 36mm diameter planetary gearbox. It runs at a no-load speed of 130 RPM when 24VDC is applied. While this motor’s nominal voltage is 24V, you can give it plenty of punch with the ever-convenient 20V power tool battery system!
The positive drive 8mm REX shaft, which can be supported by an 8mm round bore bearing, has compatibility with a huge variety of goBILDA® motion components. Additionally, this motor’s specially-designed gearbox head allows for direct attachment to goBILDA® components in numerous use-cases made possible by its convenient shape.
The two power wires provide plug-and-play compatibility with goBILDA® motor controllers via 3.5 bullet connectors. You don’t need to use the encoder during normal operation, but you can tap into it with a JST XH plug to bring position and velocity control to your project.
??WARNING: Stalling this motor may cause irreparable damage!This motor is extremely high-power. Use extreme caution when using it in applications with hard limits, such as linear slides and rotating arms.
Downloads
Specs
| Motor Size | RS-560 |
|---|---|
| Motor Type | Brushed DC |
| Nominal Voltage | 24VDC |
| Output Shaft | 8mm REX™, 23.5mm Length |
| Gearbox Style | Planetary |
| Nominal Gear Ratio | 139:1 |
| Gear Ratio Formula | (1+(46/11)) * (1+(46/11)) * (1+(46/11)) |
| Gear Material | Steel |
| Wire Length | 470mm (including connectors) |
| Wire Gauge | 18AWG |
| Motor Connector Type | 3.5mm FH-MC Bullet Connectors |
| No-Load Speed | 70 RPM @ 12VDC |
| No-Load Current | 0.8A @ 12VDC |
| Stall Torque | 3900 oz-in (281 kg.cm) @ 12VDC |
| Stall Current | 30A @ 12VDC |
| Maximum Duty-Cycle at Rated Torque | 25% on, 75% off (Maximum 15 minutes Continuous) |
| Rated Torque | 701 oz-in (50.5 kg.cm) @ 12VDC |
| Speed at Rated Torque | 57 RPM @ 12VDC |
| Current Draw at Rated Torque | 6A @ 12VDC |
| Encoder Type | Relative, Quadrature |
| Encoder Sensor Type | Magnetic (Hall Effect) |
| Encoder Voltage Range | 3.3-5VDC |
| Encoder Resolution | 3895.9 PPR at the Output Shaft |
| Encoder Resolution Formula | (1+(46/11)) * (1+(46/11)) * (1+(46/11)) * 28 |
| Encoder Connector Type | 4-Pos JST XH [FH-MC] |
| Weight | 558g |
| IP | Patented |
This product is listed in:
goBILDA>MOTION>Motors>Saturn Planetary Gear Motors>5304 SeriesgoBILDA>ELECTRONICS>Motors>Saturn Planetary Gear Motors>5304 Series
