52Pi ICE Tower Cooler for Raspberry Pi 4 / 3B+ / 3B
Keep your Pi 4 or Pi 3 running cool and fast under heavy load, with a copper heat-pipe tower and a colour-shifting fan.
In stock, ships same business day if ordered before 2PM
Delivered by Tue, 13th of Oct

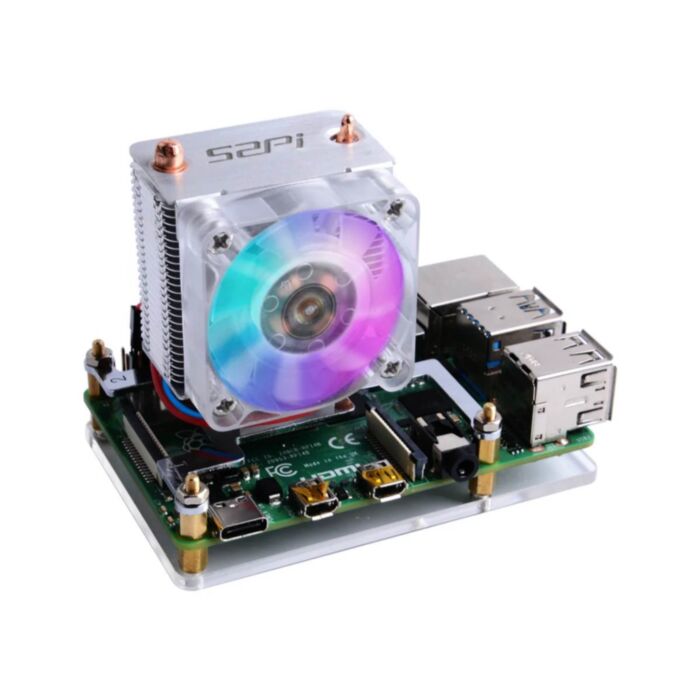

Serious tower-style cooling for the Raspberry Pi 4 and Pi 3. A copper heat pipe, a stack of heatsink fins and a colour-cycling fan work together to keep your CPU well clear of thermal throttling.
The Raspberry Pi 4 starts throttling at 80 °C, so long compiles, emulation or overclocking can quietly slow you down. 52Pi says this cooler takes an overclocked Pi from around 80 °C down to roughly 40 °C.
A 5 mm copper heat pipe draws heat up from the SoC into multi-layer fins, and a 7-blade fan pushes air straight through the stack. It runs from the Pi's own GPIO header at just 0.4 W, so you don't need a separate power supply. Steel brackets bolt it to the standard Model B mounting holes, and the fan's RGB LEDs cycle through 7 colours on their own.
Features
- Keeps sustained workloads and overclocks cool, thanks to a 5 mm copper heat pipe feeding a multi-layer fin stack
- Moves plenty of air through the fins with a 7-blade fan
- Powered straight from the GPIO header (5 V, 0.08 A), with no extra power supply or wiring
- Adds some colour to your build: the fan's RGB LEDs cycle through 7 colours automatically
- Can run quieter: move the red lead from 5 V to a 3.3 V pin for lower noise and a softer glow, at the cost of some airflow
- Bolts on securely with steel mounting brackets and brass standoffs, and thermal pads give good contact with the SoC
- Protects the board underneath with an included acrylic panel. Note: the tower is too tall for most enclosed cases.
Specifications
| Property | Specification |
|---|---|
| Compatibility | Raspberry Pi 4 Model B, Raspberry Pi 3 Model B+, Raspberry Pi 3 Model B |
| Cooling type | Active, single-stack tower heatsink with fan |
| Heat pipe | 5 mm copper |
| Fan | 7-blade, RGB LED (7 colours, auto-cycling) |
| Supply voltage | 5 V DC (from the Raspberry Pi GPIO header) |
| Rated current | 0.08 A |
| Rated power | 0.4 W |
| Connection | Flying leads to GPIO: red to 5 V, black to GND |
| Thermal interface | Thermal pads (included). Thermal paste is not included but can improve performance. |
Resources
What's Included
- 1x ICE Tower heatsink with RGB fan
- 2x Steel mounting brackets
- 8x M2.5 brass standoffs
- 4x M2.5 nuts
- 6x M2.5 screws
- 3x Thermal pads
- 1x Screwdriver
- 1x Acrylic protective panel
