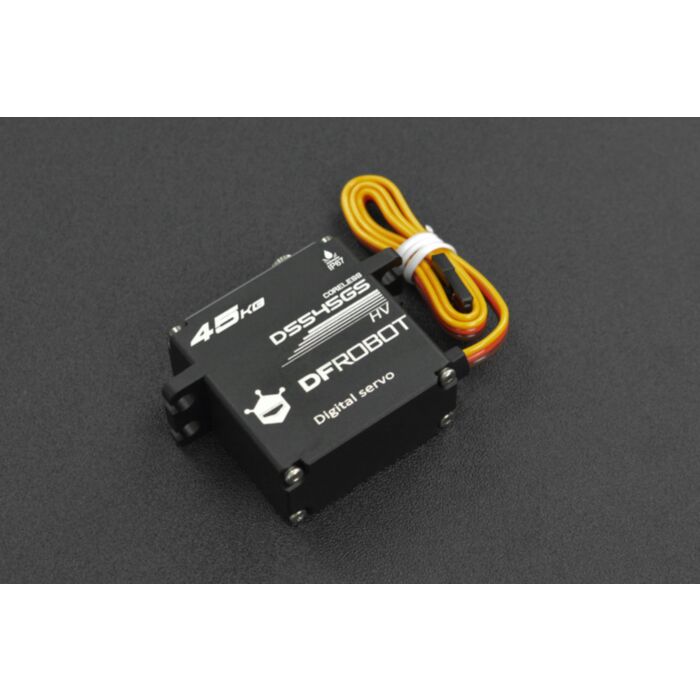

45KG Torque Coreless Waterproof Servo

SKU: SER0061 Brand: DFRobot
This 45KG waterproof high-torque coreless servo comes with all-metal gear and aluminum shell, which makes it stronger, more wear-resistant and durable...
$79.02 AUD, inc GST
$71.84 AUD, exc GST

Available with a lead time
Expect dispatch between May 14 and May 20

Quantity Discounts:

  • 6+ $70.75 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This waterproof high-torque coreless servo comes with all-metal gear and aluminum shell, which makes it stronger, more wear-resistant, and durable. The circuit board is laminated and sealed with a waterproof gasket and breathable composite waterproof glue so that the heat generated by the circuit board can be dissipated freely, and the water medium cannot enter, so as to achieve the IP67 waterproof effect. There is a built-in rotation driver that ensures the precise control of the running angle, offering more accurate, stronger, more stable, and quieter motion.

Since the PWM frequency controlled by the motor is relatively high, the jitter of the servo is very small after the load is applied, and basically, no control sound can be heard. This could be an excellent choice for multi-joint robot projects.

There is no limit inside the servo so it can rotate 360 degrees without getting stuck. With up to 180 degrees controlling angles, the servo features high accuracy and a long lifespan. The internal pulse lock function allows locking action with only transmitting one PPM pulse, which reduces the processor’s controlling consumption and extends the servo’s service life.

45KG Torque Coreless Waterproof Servo IP67

This servo features up to 180 degrees rotation angle within the pulse range of 500-2500µsec and 45kg.cm stall torque at 8.4V working voltage. It is very suitable for professional development and research scenarios, or remote controlling applications like DIY robot cars or ships.

45KG Torque Coreless Waterproof Servo IP67

Features

  • With all-metal gear and aluminum shell
  • IP67 waterproof
  • High accuracy and long lifespan
  • Applications

  • Multi-joint robot projects
  • Remote controlling applications
  • DIY robot cars or ships
  • Specification

  • Control System: PWM
  • Working Voltage: 6.0V ~8.4V
  • Working Temperature: -20°C ~ +60°C
  • Service Life: >600,000 times of use
  • Rotation Angle: 180°
  • Signal Pulse Width Range: 500 - 2500 µsec
  • Motor Driver: MOS
  • Motor Type: coreless motor
  • Potentiometer Processing Method: direct driving
  • Signal Processing Method: digital signal
  • Maximum Torque: 35kg·cm@6V, 45kg·[email protected]
  • No-load Speed: 0.12sec/60°@6V, 0.11sec/60°@8.4V
  • No-load Current: 300mA@6V, [email protected]
  • Load Current: 3100mA@6V, [email protected]
  • Dead Zone: 2usec
  • Ball Bearing: 2BB
  • Gear Material: all metal
  • Servo Shell Material: aluminum
  • Size: about 40*20*40.50mm (1.57*0.79*1.59 inch)
  • Parts List

  • 45KG Torque Coreless Waterproof Servo x1
  • Servo Horn and Screw Pack x1
  • This product is listed in:

    Components & Parts>Motors>Servos
