36-pin 0.1 Short Female Header - Pack of 5

SKU: ADA3008 Brand: Adafruit

In this world nothing can be said to be certain, except Adafruit need headers, headers, and more headers! Each pack contains five 36-pin short female headers, 0.1" pitch...

$16.40 AUD, inc GST

$14.91 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 04 and Jun 09

Quantity Discounts:

10+ $14.46 (exc GST)
25+ $14.16 (exc GST)

In this world nothing can be said to be certain, except Adafruit need headers, headers, and more headers!

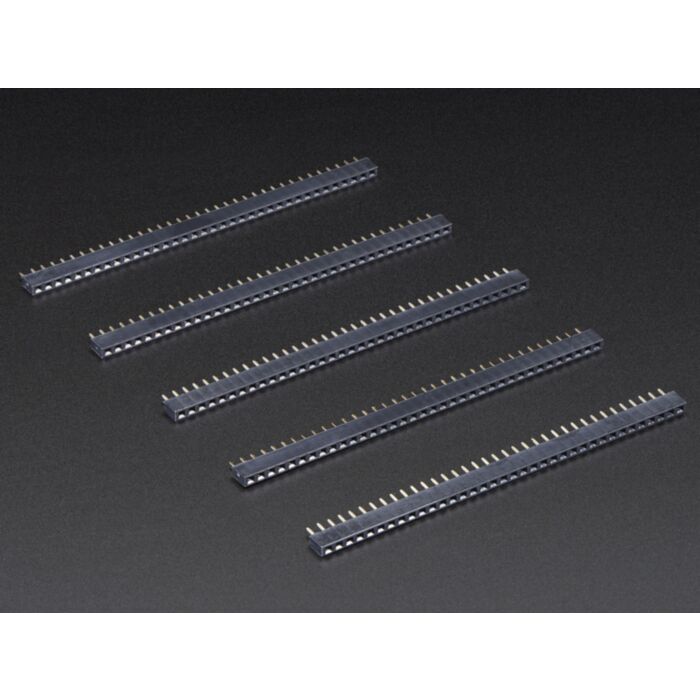

Each pack contains five 36-pin short female headers, 0.1" pitch. These headers are very short for fitting into tight spaces with a height of just 5mm instead of the 'standard' 8mm.

Female headers are like the duct tape of electronics. They're great for connecting things together, soldering to perf-boards, sockets for wires or break-away header, etc. Adafruit go through these guys real fast, and thought that given how handy they are, we'd offer them in a pack of five!

These headers are even gold plated so they wont oxidize! You can cut these down to different sizes fairly easily. First, count how many positions you want as the final piece, then pull out the next pin using a pair of pliers. Finally, cut through the empty spot with diagonal cutters. You can clean off the half-spot using a file or with the diagonal cutters.

Adafruit have a ton of different types, sizes, and shape headers in the store - check'em out!

Technical Details

Body Height: 5mm
Total Height: 8.3mm / 0.33"
Weight (of one): 1.8g
