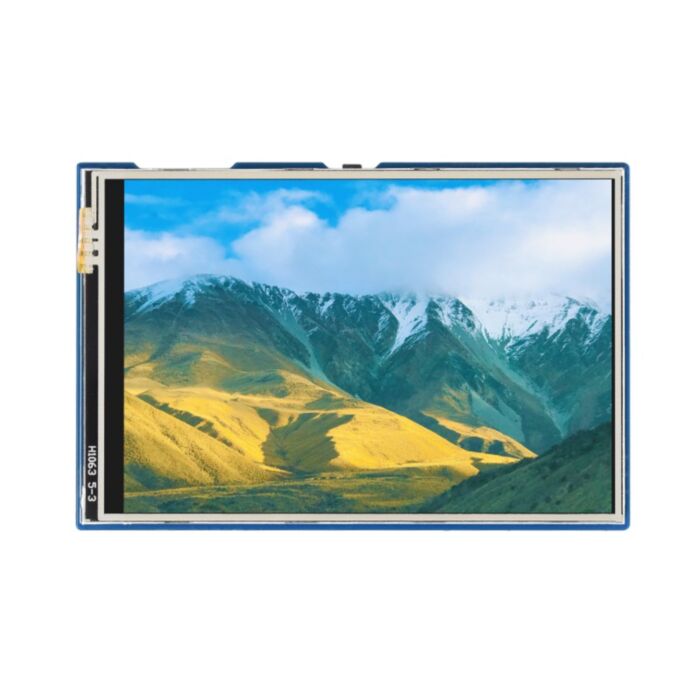

3.5inch Touch Display Module for Raspberry Pi Pico

SKU: WS-19907 Brand: Waveshare
3.5inch Touch Display Module for Raspberry Pi Pico, 65K Colors, 480×320 pixels, SPI Interface...
$34.40 AUD, inc GST
$31.27 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 06 and Jun 09

Quantity Discounts:

  • 10+ $30.34 (exc GST)
  • 25+ $29.71 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

3.5inch Touch Display Module for Raspberry Pi Pico, 65K Colors, 480×320 pixels, SPI Interface 3.5" Touch Display Module for Pico

resistive touch controller XPT2046, ILI9488 driver, using SPI bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

  • Size3.5"
  • Resolution480×320
  • Display Color65K Colors
  • Display PanelIPS

  • Touch TypeResistive
  • InterfaceSPI
  • Driver/ControllerILI9488/XPT2046
Features at a glance
  • 480×320 resolution, IPS screen, 65K colors, clear and colorful displaying effect
  • Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
  • MicroSD card slot for storing images and direct displaying them easily
  • Programmable backlight control, power saving
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
Operating voltage 5V Resolution 480×320 pixels
Communication Interface SPI Display size 73.44 × 48.96 mm
Display Panel IPS Pixel size 0.153 × 0.153 mm
Driver ILI9488 Dimensions 86.00 × 57.20 mm
Touch Controller XPT2046
Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico

Raspberry Pi Pico is NOT included. What's On Board
  1. Rapsberry Pi Pico header
  2. CAT6219
    LCD backlight power chip
  3. RT9193-33
    3.3V linear voltage regulator
  4. Pico reset button
  5. MicroSD card slot
  1. XPT2046
    resistive touch controller
  2. 74HC4040
    counter chip, for clock frequency division
  3. 74HC04D
    inverter chip
  4. 74HC4094
    serial data to parallel data converter
Pinout definition Outline dimensions Resources & Services WIKI: Pico-ResTouch-LCD-3.5

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
