3.5 TFT 320x480 + Touchscreen Breakout Board w/MicroSD Socket - HXD8357D

SKU: ADA2050 Brand: Adafruit
Add some jazz & pizazz to your project with a color touchscreen LCD. This TFT display is big (3.5" diagonal) bright (6 white-LED backlight) and colorful! 480x320...
$82.40 AUD, inc GST
$74.91 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 05

Quantity Discounts:

  • 6-12 $71.91 (exc GST)
  • 12+ $69.66 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

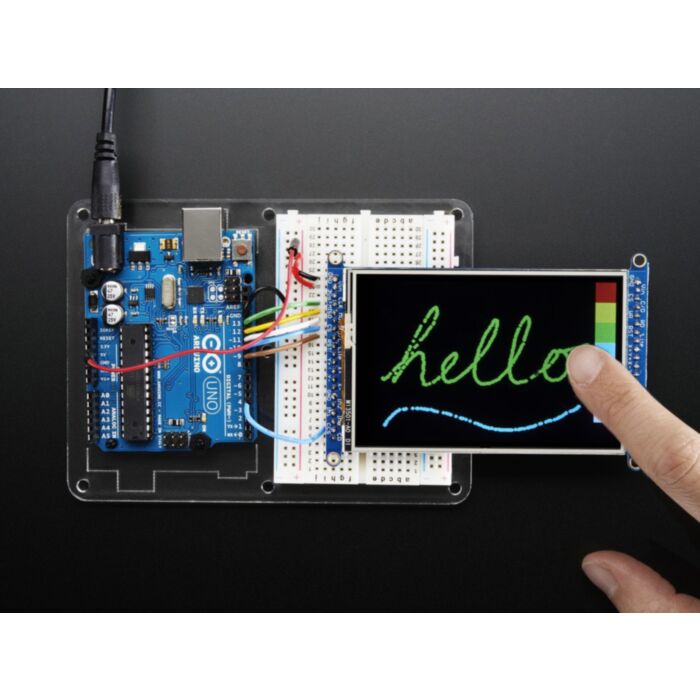

Add some jazz & pizazz to your project with a color touchscreen LCD. This TFT display is big (3.5" diagonal) bright (6 white-LED backlight) and colorful! 480x320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128x64 display, and double Adafruit's 2.8" TFT. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

This display has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. The display can be used in two modes: 8-bit or SPI. For 8-bit mode, you'll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than 8-bit mode. In addition, 4 pins are required for the touch screen (2 digital, 2 analog) or you can purchase and use Adafruit's resistive touchscreen controller (not included) to use I2C or SPI.

Of course, Adafruit wouldn't just leave you with a datasheet and a "good luck!". Check out Adafruit's detailed tutorial for wiring, test and example code! For 8-bit interface fans Adafruit have written a full open source graphics library that can draw pixels, lines, rectangles, circles, text, and more. For SPI users, Adafruit have a library as well, its separate from the 8-bit library since both versions are heavily optimized. We also have a touch screen library that detects x, y and z (pressure) and example code to demonstrate all of it.

Note: Arduino and breadboard not included. TFT and header only.


Technical Details

Specifications:

  • 3.5" diagonal LCD TFT display
  • 320x480 resolution, 18-bit (262,000) color capable - Adafruit's code uses only 16-bits since its faster.
  • 8 bit digital interface, plus 4 or 5 control lines (12 pins minimum) or SPI mode with 4 or 5 SPI data/control lines (4 pins minimum) - not including the touch screen.
  • 5V compatible! Use with 3.3V or 5V logic such as an Arduino
  • Onboard 3.3V @ 150mA LDO regulator
  • 6 white LED backlight with DC/DC constant-current boost. You can PWM dim the backlight
  • 1x20 headers for easy breadboarding
  • 4-wire resistive touchscreen
  • Datasheets, PCB CAD files, and Fritzing object in the tutorial

Dimensions:

  • Screen: 56mm x 85mm x 4mm / 2.2" x 3.4" x 0.2"
  • PCB: 56mm x 97mm x 2mm / 2.2" x 3.8" x 0.1"
  • Weight: 52g
