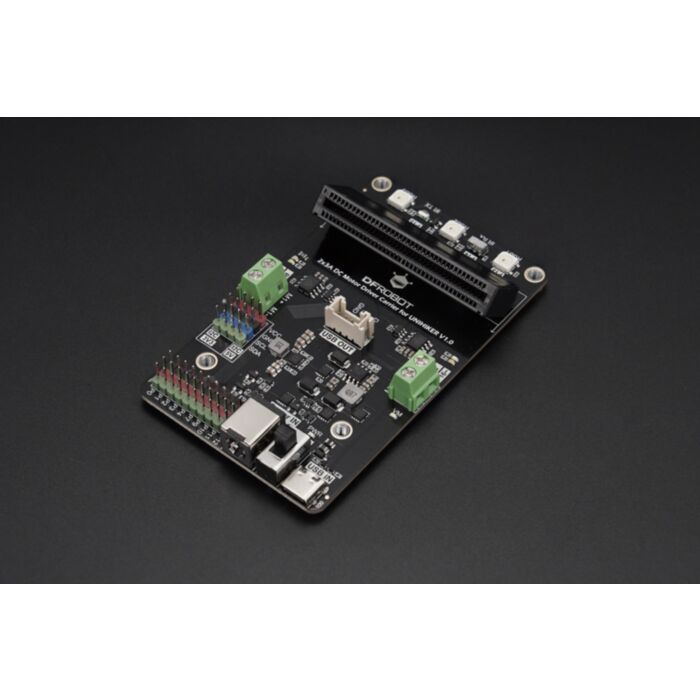

2x3A DC Motor Driver Carrier Board for UNIHIKER

SKU: DFR1136 Brand: DFRobot

The UNIHIKER Carrier Board featuring a dual DC motor drive, RGB lights, infrared transmission and reception, and multiple power supply options (USB, DC...

$25.40 AUD, inc GST

$23.09 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 29 and Dec 31

Quantity Discounts:

6+ $21.94 (exc GST)
12+ $21.01 (exc GST)

This motor driver carrier board is a specially designed carrier for the UNIHIKER, featuring a tilted edge connector slot that provides the screen with the optimal viewing angle. It integrates a dual DC motor drive that can be powered separately, offering flexible power supply options including USB, DC head, and terminal block. The board also includes onboard RGB lights and infrared transmission and reception functions, enhancing its playability and versatility. It extends 10*3Pin ports and 4*I2C ports, supporting 5V I2C for stronger compatibility and making it highly expandable.

Additionally, all spare IOs are led out, and multiple indicator lights (for power, motor power, and motor signal) are included, making it convenient for debugging. The carrier can also power the UNIHIKER via a U-shaped USB adapter cable. In combination with DFRobot's powerful Gravity product system, this carrier opens up unlimited possibilities for creative and functional projects with the UNIHIKER.

UNIHIKER and Carrier Board Power Supply Method Explanation

Figure: Power Supply Method Explanation

Specification

Power interface:
DC2.1 interface: 6~12V
TypeC interface: 5VWorking voltage: 3.3VI/O expansion header:
3Pin: 10*I/O ports, 3.3V
4Pin I2C: 3*3.3V, 1*5VMotor interface: DC Motor x2USB adapter port: HY2.0 4Pin interface, used to power the UNIHIKERPower switch: controls the power supply of the USB adapter port and the motor drive Mounting hole: M3x4Onboard components:
WS2812 RGB light x3
Infrared transmitter x1
Infrared receiver x1Size: 98x58.5mm / 3.86x2.30inWeight: 70g

Documents

Parts List

Motor Drive Carrier ×1
U-shaped Type-C to HY2.0-4P cable x1
DC Barrel Jack Adapter - Male x1

This product is listed in:

Breakouts & Modules>Motor Drivers & Controllers>Brushed DC Motor Drivers
