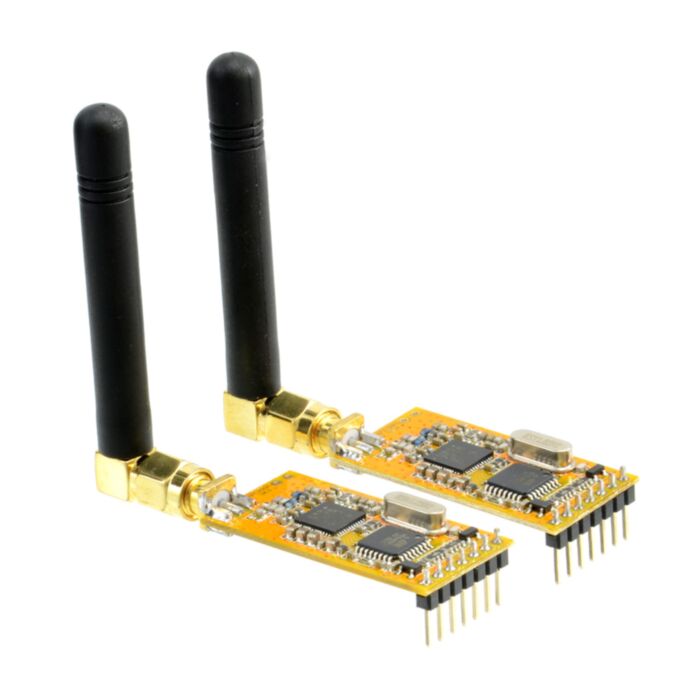

    2pcs Wireless RF Transceiver 431-470MHz

    SKU: 017-RMB-CM12111

    $61.49 AUD, inc GST

    More Views

    2pcs Wireless RF Transceiver 431-470MHz

    SKU: 017-RMB-CM12111

    $61.49 AUD, inc GST
    2 reviews 0 5 5

    Retired Product

    This product has been retired and kept here for reference.

    This package consists of two half-duplex wireless data transceiver modules and each module is highly integrated with an MCU and a powerful RF chip. These modules boast features such as selectable channels, ultra long transmission distance (1000 meters)  and abundant interface options (UART/TTL,RS-485&RS-232). The software application ("RF-Magic") is offered for free so that users can modify the settings of the module. This is a popular module thanks to its ease of use, slim size and wide power supply range.


    Features:

    • Size (only PCB) : 39.60mm(L) X 19.30mm(W) X 4.32mm(H) ±0.2mm
    • Ultra long transmission distance: 800-1000 meters @1200bps
    • Working frequency: 431-478Mhz (1KHz step)
    • +3.3-5.5V wide power supply range
    • -112dBm(9600bps) high sensitivity
    • Over 100 channels
    • GFSK modulation
    • Highly efficient cyclic interleaving error correction encoding
    • Flexible software program option settings
    • Selectable RFID index
    • UART/TTL, RS-485 & RS-232
    • Large data buffer: 512bytes
    • Suitable for massive data transfer
    • Built-in watchdog ensures long-term operation



    Specs:

    Parameter

    Value

    Power Supply

    3.3 – 5.5 (± 50mV ripples)

    Frequency Range

    431MHz to 478MHz (1KHz frequency step)

    Frequency Interleaving

    200KHz

    Output Power

    20mW ( 10 levels adjustable)

    Receiving Sensitivity

    -117dBm@1200bps

    airborne speed

    1200 – 9600bps

    Speed In Port

    1200 – 9600bps

    Parity Check

    8E1/8N1/801

    Operating Humidity

    10% - 90%

    Operating Temperature

    -20℃ - 70℃

    Transmission Mode Current

    ≦35mA@10mW

    Receiving Mode Current

    ≦28mA

    Sleep current

    ≦5uA

    Transmission Distance

    800-1000m (visible range in open area)



    Pinout:

    Pins

    Definition

    Description

    1

    GND

    0V

    2

    VCC

    3.3V-5.5V

    3

    EN

    POWER ENABLE(≧1.6V) or SUSPENDED ENABLE(≦0.5V Hibernation)

    4

    RXD

    UART input, TTL

    5

    TXD

    UART output, TTL

    6

    B/RX

    RS485- or RS232 RX

    7

    A/TX

    RS485+ or RS232 TX


    Dimensions:

    Settings of "RF-Magic (Ver:4.2)":

    Settings
    Options
    Default
    Series Rate
    1200,2400,4800,9600bps
    9600bps
    Series Parity
    Disable, Even parity, Odd parity
    Disable
    Types of Series
    RS485, RS232
    RS485
    RFID Disable
    Disable, Enable
    Disable
    RFID Index
    0-65536 (16 bit)
    12345
    RF Frequency
    431-478MHz (1kHz step, accuracy ±100Hz)
    434MHz
    Series rate
    1200,2400,4800,9600bps
    9600bps
    Freq Deviation
    5.4, 10.8, 21.6, 43.2, 86.4KHz
    21.6 KHz
    RF Power
    1-10 (10 indicates 20mW)
    10 (20mW)


    Package Contents:

    • Wireless RF Transceiver 431-478MHz GFSK Data Transfer ×2
    • Omni Antenna ×2

    Downloads:

    This product is listed in:

    Documentation and Resources:

    Product Comments


    Customer Reviews

    1. Review by David verified purchaser
      Rating
      100

      Great set of transceivers. Easy to use, simply connect power & earth pins and tx/rx and send and receive your data. It did take a lot of searching to find the correct "RFMagic" program to change their configuration. Graham could possibly put a link on his page. It is http://sure-electronics.net/download/ then select RMB-CM12111 from the drop down. (Posted on 3/04/2016)

    2. Review by Jaidyn - Easy, Good range wireless verified purchaser
      Rating
      100

      These RF modules are a pleasure to work with.
      They are very easy to hook up, and for normal use require no calibration. Working with Bluetooth modules in the past I know how much of a pain they can be to get working, these were a completely different story.
      With the standard 0.1" pins and compact size they are easy to prototype with on a breadboard.
      I used them to create a wireless serial connection between Arduino to Arduino, and I couldn't believe how easy it was, just plug and play.
      I was able to get a range of 500m from indoors to outdoors, and I was quite impressed.
      If you are looking to add some wireless capability to your project, don't use Bluetooth, instead spend a little more and get these, you won't regret it. (Posted on 29/03/2013)
