1602 LCD White Characters Blue Backlight & Demo Board HD44780 (16X2)

SKU: 017-DE-LM12116

$11.18 AUD, inc GST
$10.16 AUD, exc GST

More Views

1602 LCD White Characters Blue Backlight & Demo Board HD44780 (16X2)

SKU: 017-DE-LM12116

$11.18 AUD, inc GST
$10.16 AUD, exc GST

Retired Product

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been retired and kept here for reference.

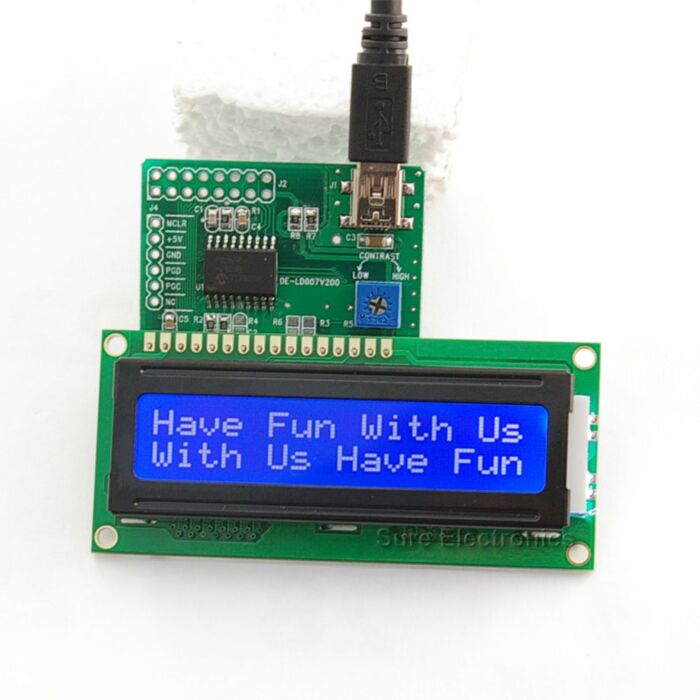

This package includes a Character LCD Module, a Demo Board and attaching hardware. The microcontroller on the Demo Board is reprogrammable.

Product Number
DE-LM201
Product Name
1602 LCD White Characters Blue Backlight & Demo Board
Net Weight 85g
LCD
Display Format
16 Characters X 2 Lines
Character Format
5 X 8 dots
Drive Method
1/16 Duty
Backlight
Blue
Logic Supply Voltage
5.0 volt
Outlet Dimensions
102.0 X 40.8 X 11.0 max
Display Area
81.0mm X 21.0mm
Character Size
3.88mm X 7.13mm
Character Pitch
4.66mm X 7.63mm

Driving Voltage
(@25℃)δ
Vop
VDD-V0
---
4.7
---
V
Supply Current
(Logic)
IDD
VDD=5.0 V
---
---
2.0
mA
δ: for normal temperature version
Demo Board
Operating Temperature -40℃ to +85℃
Storage Temperature -65℃ to 150℃
DC Current per I/O Pin 20.0mA sink and draw
Outline Dimensions 45(mm) x 33(mm)
