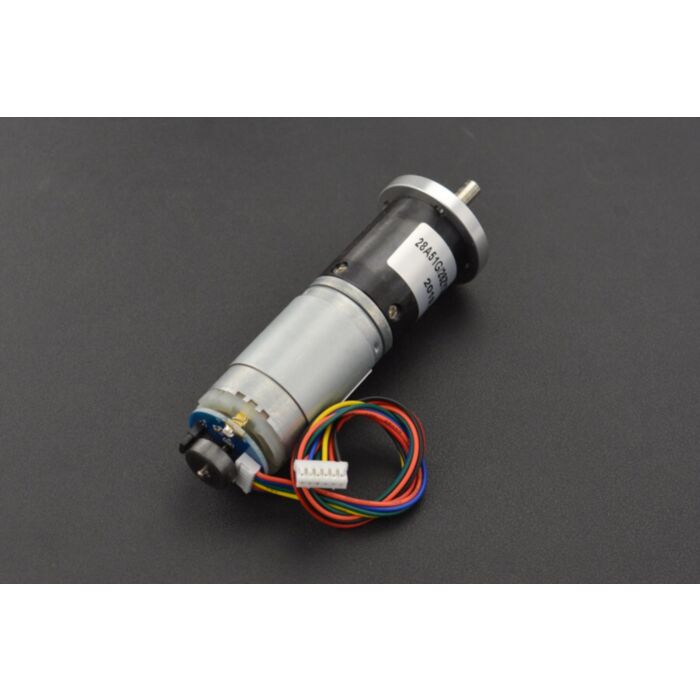

12V Low Noise DC Motor 146RPM w/Encoder

SKU: FIT0277 Brand: DFRobot

This is DFRobot customized high-quality DC motor. The best part of this motor is that it is low noise and high torque output motor with optical encoder buildin.

$82.05 AUD, inc GST

$74.59 AUD, exc GST

Available with a lead time
Expect dispatch between May 05 and May 08

Quantity Discounts:

6+ $71.61 (exc GST)
12+ $69.37 (exc GST)

This is one of our favourite DFRobot customised high quality DC motor. It is a low noise motor and high torque output motor with hall encoder built-in. The hall encoder gives 663 pulse per rotation which is able to sense 0.54 degree rotation from the shaft. This resolution meets a general PID speed control requirements thus making it a great choice for robotics.

The sturdy metal casing, and gears gives you a change at a competition robot or harsh environments where your robot might get hit from objects or people. This motor is widely used in mobile robot area and some stationary automation devices. The hall encoder is cased on a plastic top easily accesible, and with the included cable you can easily get it connected to your device. Check out our encoder adapter if you want to use it with other controller boards.

Specifications

Model: 28PA51G
Working voltage: 12V
No load RPM (before gearbox): 8000±10% rpm
No load 68dBA ( 10cm measurement distance )
Gear ratio: 56:1
No load RPM (after gearbox): 143±10% rpm@12V
No load current: @ 12V: 0.39A
Stall current: 3.6A
Rated torque @ 12V: 5.5kgf.cm (79oz.in)
Encoder Resolution: 13 PPR (663 PPR for gearbox shaft)
Two phase hall encoder
Size: 123x36x36mm (4.84x1.42x1.42")
Weight: 270g

Documents

Parts List

1 x Encoder Cable
1 x 12DC Motor
1 x Encoder Board
