13.56MHz RFID/NFC Clear Keychain Fob - 1KB

SKU: ADA363

$4.50 AUD, inc GST

More Views

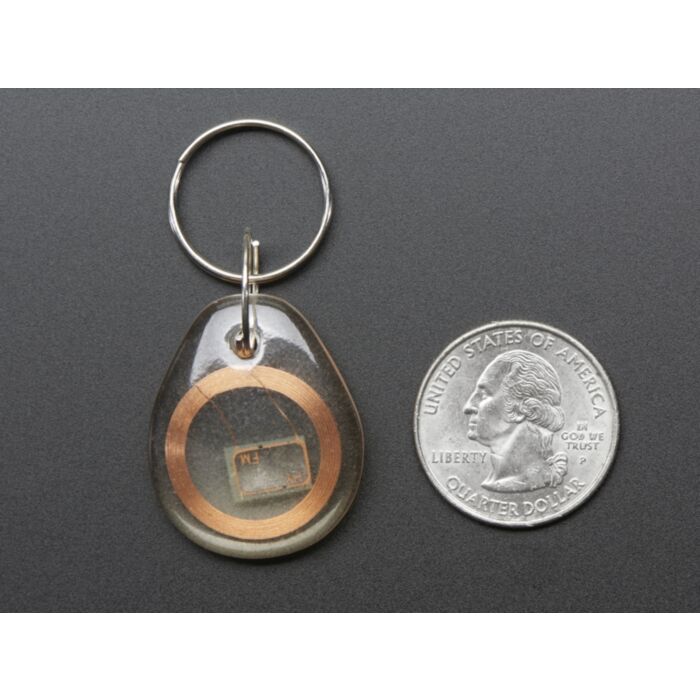

13.56MHz RFID/NFC Clear Keychain Fob - 1KB
4.5 AUD

SKU: ADA363

$4.50 AUD, inc GST
100 units ship in 4 to 6 days (delivered by Mon, 30th of Jan)
OR

This is a blank 13.56MHz RFID/NFC keychain fob - often used for keys but also an easy way to tag something. The tag contains a small RFID chip and an antenna, and is passively powered by the reader/writer when placed a couple inches away.

These can be read by almost any 13.56MHz RFID/NFC reader but make sure it can handle ISO/IEC 14443 Type A cards as there are a few other encoding standards (like FeLica) They are tested and work great with both our PN532 NFC/RFID breakout board and Adafruit NFC/RFID Shield for Arduino!

These chips can be written to & store up to 1 KB of data in writable EEPROM divided into banks, and can handle over 100,000 re-writes. You can use our PN532 NFC/RFID breakout board or Adafruit NFC/RFID Shield for Arduino to read and write data to the EEPROM inside the tag. There is also a permanent 4-byte ID burned into the chip that you can use to identify one tag from another - the ID number cannot be changed.

These use a ISO/IEC 14443 Type A chipset, which used to be the 'classic' NFC chipset. In ~2014, the NFC forum decided not to support this chipset anymore, so newer phones do not support it. This only matters if you're trying to use this tag with a phone/tablet.

Technical Details

RFID chip specification:

  • 1 KiloByte (8 KiloBit) non-volatile EEPROM storage
  • Built in encryption engine with 48-bit key
  • 4 Byte unique identifier burned into the chip
  • 13.56 MHz frequency

Tag specification:

  • 30mm x 25mm x 6mm / 1.2" x 1" x 0.2"
  • Weight: 4.3g
  • Works about 2" away from reader
